After order for 1-2 days
Recording device for 8 IP cameras with PoE power supply (max. 150 W, IEEE 802.3af/at). Combinations of different resolutions up to 32 Mpx and bitrate up to 256 Mbps allowed. Features include advanced person and vehicle analysis with false alarm reduction based on Deep Learning technology and face recognition on 4 channels in a stream or face recognition and image capture on up to 8 channels. The device also supports H.265+ decoding, which can save up to 75% of data volume. Two SATA hard drive bays are available for up to 14TB of capacity.
AcuSense
Hikvision's AcuSense deep learning technology offers human and vehicle recognition to significantly reduce false alarms.
BASIC SPECIFICATIONS
IP Video Input: 8
Recording Resolution: 32 Mpx, 24 Mpx, 12 Mpx, 8 Mpx, 6 Mpx, 5 Mpx, 4 Mpx, 3 Mpx, 1080p, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF

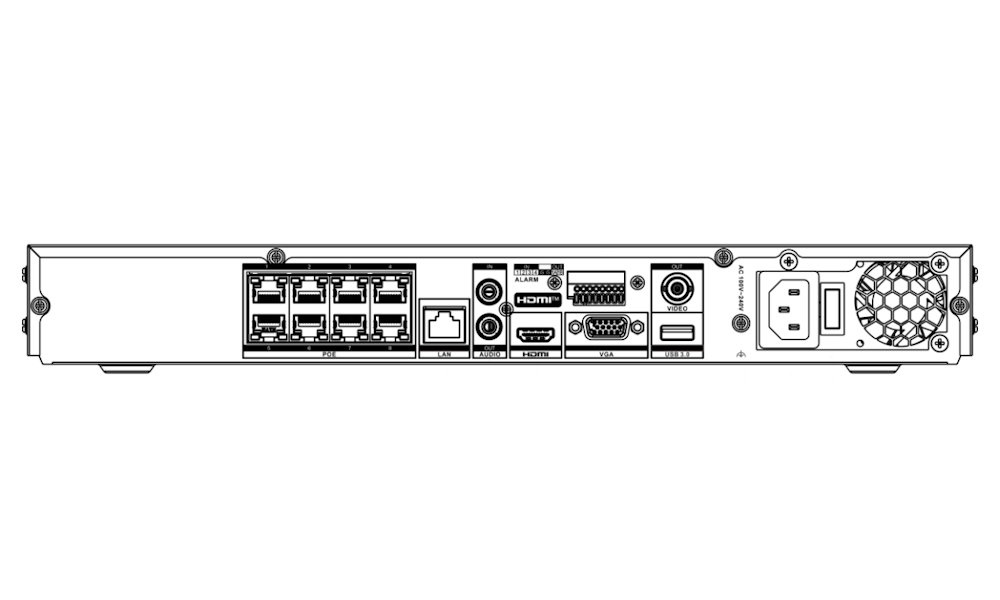

Interface: 1× HDMI 4K output, 1× VGA Full HD output, 1× CVBS output (BNC), 1× USB 2.0, 1× USB 3.0, 1× RJ-45, 8× RJ-45 (PoE support), 4× alarm input, 1× alarm output, 1× audio input (RCA), 1× audio output (RCA)
HDD: 2× SATA (max. 14 TB)
PoE: yes, 802.3af/at
Dimensions: 385 × 317 × 52 mm
Weight: ≤ 2,5 kg
CAUTION: Facial recognition, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the others unavailable.
| Brand | |
| Type specification : | Záznamové zařízení |
| Manufacturer : | Hikvision |
| Technical specification | |
| Fanless : | no |
| Max. IP recording resolution (Mpx) : | 32 |
| Placement : | rack |
| Video codecs : | H.264 |
| Video codecs : | H.264+ |
| Video codecs : | H.265 |
| Video codecs : | H.265+ |
| NVR videoanalytics : | počítání osob, specializovaná kamera |
| NVR videoanalytics : | rozpoznání tváře, libovolná kamera |
| NVR videoanalytics : | detekce tváře, libovolná kamera |
| Inputs and outputs | |
| Alarm in/out : | yes |
| Audio in/out : | Audio line in/out |
| HDMI : | 1 |
| Heterogeneous - independent video outputs : | ano |
| Disc slots : | 2 |
| Connectable IP cameras : | 8 |
| RAID controller : | no |
| RS-485 port : | no |
| USB 2.0 : | 1 |
| USB 3.0 : | 1 |
| VGA : | 1 |
| Video output : | HDMI 4k |
| Video output : | VGA |
| Power supply | |
| Integrated battery : | no |
| Power supply for PoE/PoC cameras : | no |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Physical properties | |
| Weight (kg) : | 2.5 |
| Dimensions : | 385 × 317 × 52 mm |
