Ubiquiti UniFi Switch Flex 2.5G 8 PoE

Add recension
5 146 CZK 4 253 CZK without VAT

Unknown availability

Code: NAPUBT1111 PN: USW-Flex-2.5G-8-PoE Warranty: 26 months
Výrobce: UBIQUITI
 (Ubiquiti International Holding B.V.)
Ekkersrijt 3102, Son, Nizozemsko
support@ui.com
www.ui.com
Ubiquiti UniFi Switch Flex Mini 2.5G 8 PoE Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter. 8× 2.5 GbE PoE++ output ports 1×... more
Count:
Add to Cart

Favorites
Compare
Print
Send to friend

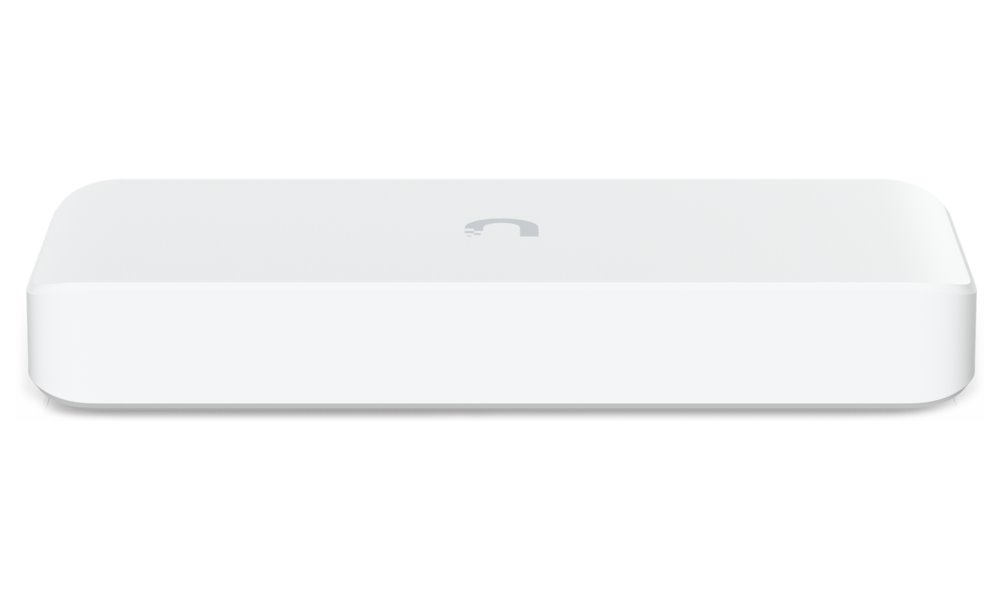

Ubiquiti UniFi Switch Flex Mini 2.5G 8 PoE

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

  • 8× 2.5 GbE PoE++ output ports
  • 1× 10 GbE PoE+++ input port for power / SFP+ port combo
  • 196W PoE availability with optional AC power adapter

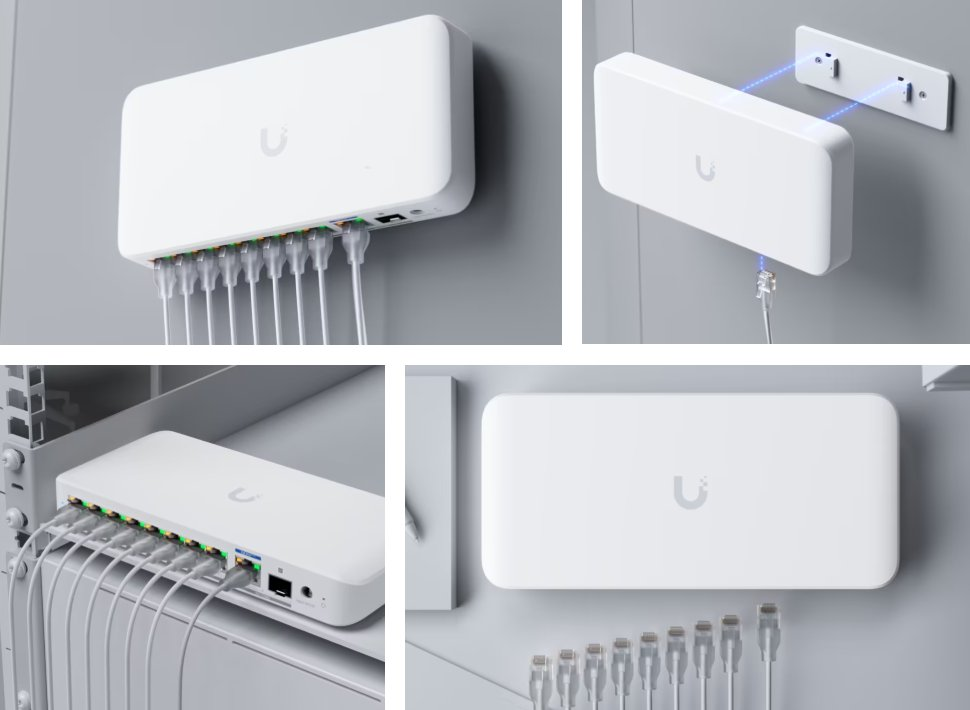

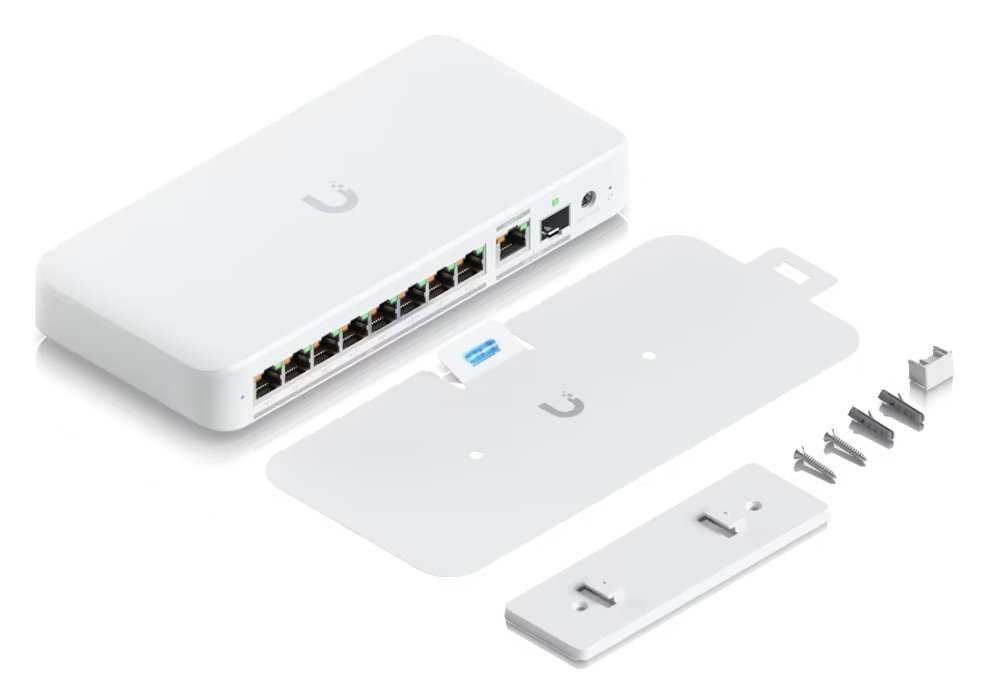

  • Wall-mountable (kit included), DIN rail-mountable (sold separately)
  • LED indication

The UniFi Network application enables configuration and management of UniFi devices. It is pre-installed on UniFi OS Consoles (UniFi Dream Machine, Dream Router, Dream Wall, Express, Cloud Gateway Ultra, etc.). Alternatively, the free UniFi Network Server software can be installed on your own computer or server (Windows, macOS, Linux). The UniFi Network Server software is continually updated, so it is recommended to always use the latest version, available for download in the Download section on the Ubiquiti website. Learn more about this product at Ubiquiti training.

L2 Features:
STP / RSTP with priorities and port-level disable
Storm control
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit
Proprietary loop protection
Port isolation
Port mirroring

Power options:

  • PoE+++ input: 57W
  • PoE++ input: 37W
  • PoE+ input: 12W
  • 210W AC adapter input: 196W

BASIC SPECIFICATIONS

Interface: 8× 2.5/1 GbE RJ45 ports, 1× 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port
Switch capacity: 60 Gbps (30 Gbps non-blocking)
Forwarding rate: 44.64 Mpps
PoE support: Yes (802.3af/at/bt, 196 W PoE budget)
Dimensions: 212.9 × 99.4 × 33.5 mm
Weight: 567 g

Manual (installation guide):
Ubiquiti UniFi Switch Flex Mini 2.5G 8 PoE

Brand
Type specification :  Switch
Manufacturer :  UBIQUITI
Technical specification
Fanless :  no
Homologation EN50155 :  no
IGMP :  no
Switching capacity (Gbps) :  60
Management :  yes
Norma :  802.3af
Norma :  802.3at
Norma :  802.3bt
IPv6 support :  ne
PoE-in :  802.3af/at/bt
PoE-out :  802.3af/at
PoE-out :  802.3bt
PoE-out (quantity) :  8
Outdoor use :  no
Placement :  desktop
Placement :  wall mount
Placement :  DIN rail
Max. operating temperature (°C) :  45
Min. operating temperature (°C) :  -20
Switch throughput (Mpps) :  44,64
Stackable :  ne
OSI layer :  L2
Display
Display :  no
Network interfaces
Gigabit LAN :  yes
LAN :  yes
Počet PoE portů :  8
Port Speed :  10 Gb/s + 2,5 Gb/s
Inputs and outputs
RJ-45 :  8
RS-232 port :  no
SFP+ :  1
Card reader
MicroSD card support :  no
Power supply
Power type :  PoE active (802.3bt)
Power type :  external adapter
Power type :  PoE active (802.3af)
Power type :  PoE active (802.3at)
PoE support :  yes
Input Voltage (V) :  54 (DC)
Input Voltage (V) :  50 - 57 (PoE)
Warranty
Warranty period EU (months) :  26
Warranty period CRN (months) :  26
Physical properties
Color :  white
Weight (g) :  567
Dimensions :  212,9 × 99,4 × 33,5 mm
Additional equipment and features
Certification mark :  CE, FCC, IC
