After order for 2 weeks

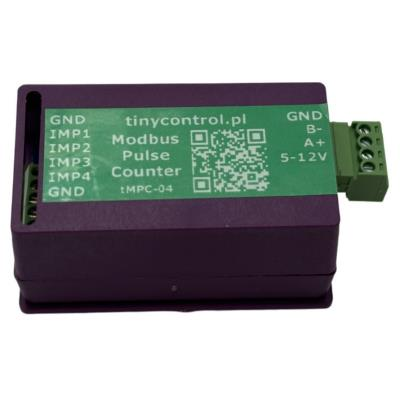

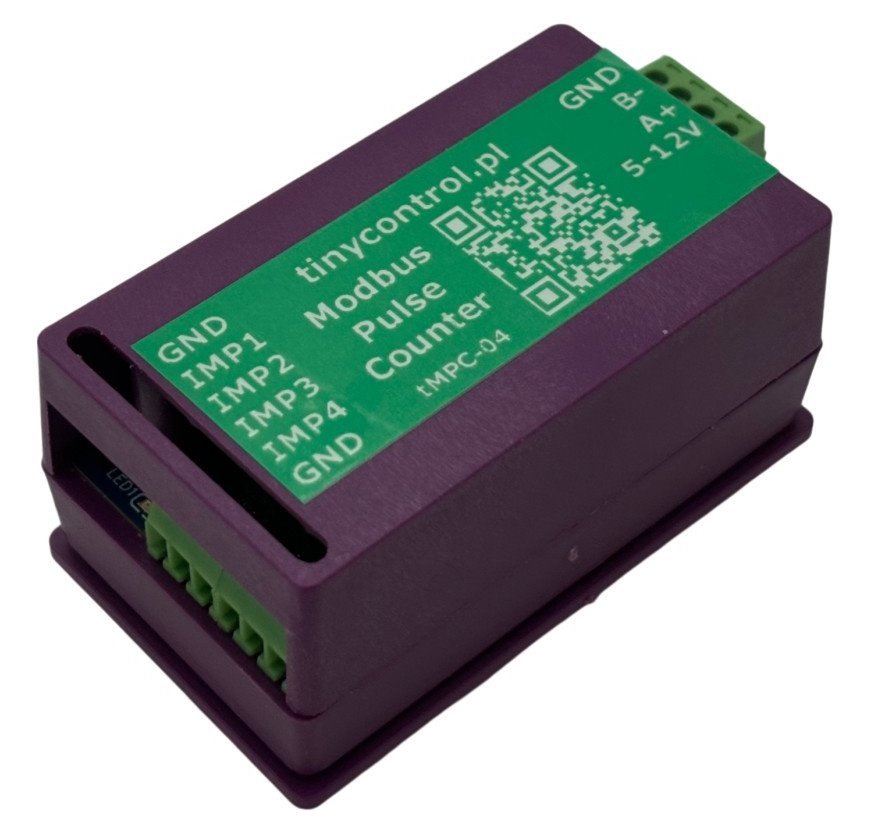

The tMPC-04 is a 4-input pulse counter designed for use with any meters with pulse outputs. It communicates via Modbus RTU to provide pulse counts, calculated energy and estimated power. Other measures can also be measured, e.g. flows from water or gas meters. Conversion to these units is based on user-entered coefficients (e.g. pulses per kWh), the default is 1000 pulses per unit.
Default setup
If these settings match your energy meters, the device is ready for immediate use.
BASIC SPECIFICATIONS
Power supply: 5-12 V DC (connector), 5 V (USB)
Pulse inputs: 4
Maximum counting speed: ~2000 Hz (up to 4000 Hz without power estimation)
Interfaces: Serial (over USB; 115200 baud), Modbus
Dimensions: 71 × 42 × 37 mm
Weight: 40 g
| Brand | |
| Type specification : | Network specialties |
| Manufacturer : | TINYCONTROL |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Usage and purpose | |
| Type of accessories : | pulse counter |
| Physical properties | |
| Weight (g) : | 40 |
| Dimensions : | 71 × 42 × 37 mm |
Code: NJSGWL0007
Code: NJSGWL0072
