Unknown availability

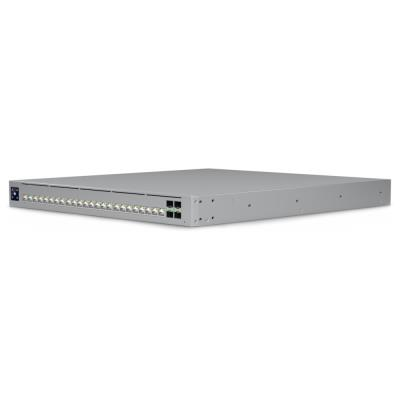

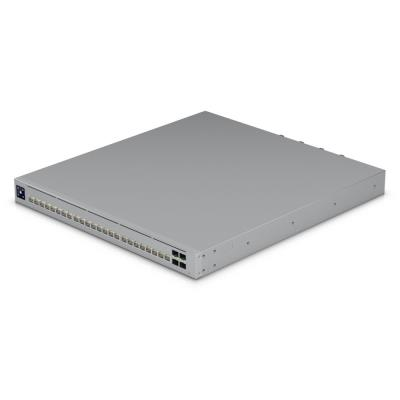

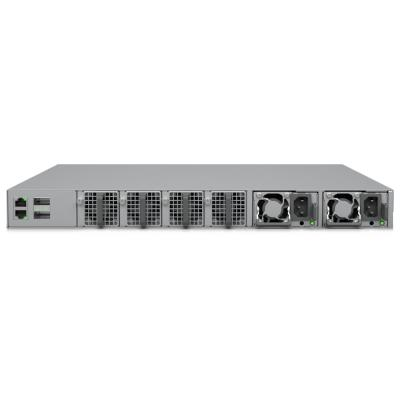

24-port L3 Etherlighting™ switch with PoE+++ support for enterprise use. Supports high-capacity 10 GbE RJ-45 and 25G SFP28 connectivity for designing high-availability systems. The device is equipped with two hot-swap power modules and four hot-swap fans, which increases its reliability and simplifies maintenance. It is ideal for deployment in environments requiring high reliability, throughput, and advanced network management.
L3 Features
L2 Features
BASIC SPECIFICATIONS

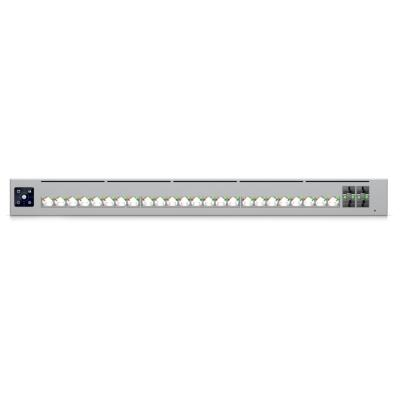

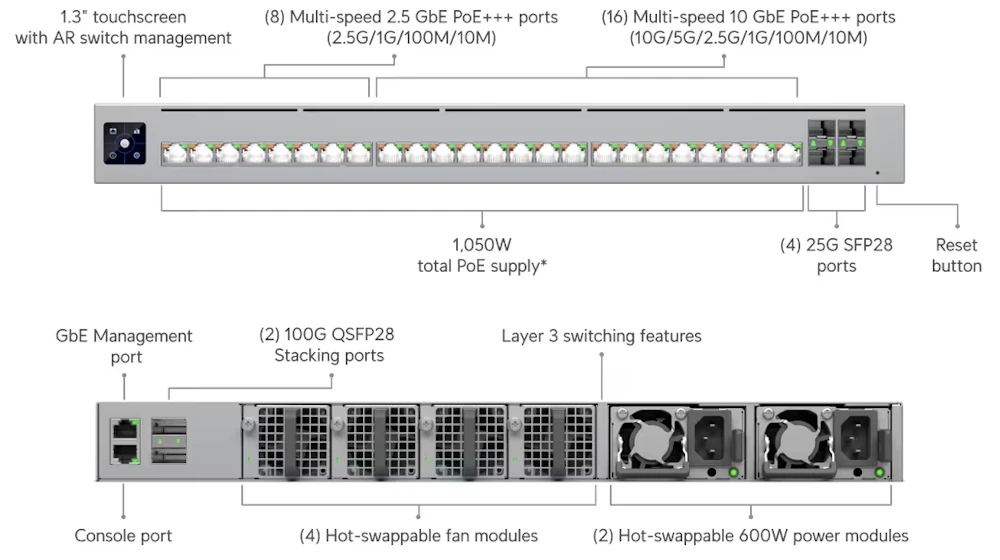

Ports: 16× 10G RJ-45 PoE+++, 8× 2.5G RJ-45 PoE+++, 2× 100G QSFP28, 4× 25G SFP28
Switching Capacity: 460 Gbps
Forwarding Rate: 342 Mpps
PoE Support: Yes, 18× PoE+++, max. budget 2,400 W
Dimensions: 496 × 442 × 44 mm
Weight: 9.3 kg (4.7 kg with rack mounts)
| Brand | |
| Type specification : | Switch |
| Manufacturer : | UBIQUITI |
| Technical specification | |
| Management : | yes |
| OSI layer : | L3 static (L2+) |
| Fanless : | no |
| IGMP : | yes |
| Switching capacity (Gbps) : | 460 |
| IPv6 support : | ne |
| Homologation EN50155 : | no |
| PoE-in : | ne |
| PoE-out : | 802.3af/at |
| PoE-out : | 802.3bt |
| PoE-out (quantity) : | 24 |
| Outdoor use : | no |
| Max. operating temperature (°C) : | 40 |
| Min. operating temperature (°C) : | -5 |
| Placement : | desk mount |
| Placement : | rack mount |
| Switch throughput (Mpps) : | 342 |
| Stackable : | ne |
| Display | |
| Display : | yes |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Počet PoE portů : | 24 |
| Port Speed : | 2,5 Gb/s + 10 Gb/s + 25 Gb/s + 100 Gb/s |
| Inputs and outputs | |
| RJ-45 : | 24 |
| RS-232 port : | no |
| SFP28 (počet) : | 4 |
| QSFP28 (počet) : | 2 |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| PoE support : | yes |
| Power type : | internal power supply |
| Power type : | redundant |
| Input Voltage (V) : | 200 - 240 (AC) |
| Input Voltage (V) : | 100 - 120 (AC) |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Physical properties | |
| Color : | silver |
| Weight (g) : | 9300 |
| Dimensions : | 496 × 442 × 44 mm |
| Additional equipment and features | |
| Certification mark : | CE, FCC, IC |
Code: NETUBT0062
