Unknown availability
Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.
In the Box:
1× Ubiquiti UniFi Access Gate Hub (UA-Hub-Gate)
1× Ubiquiti UniFi Access G3 Intercom (UA-G3-Intercom)
1× Ubiquiti UniFi PoE++ Adapter (U-PoE++)
2× Ubiquiti PoE Over 2-Wire Retrofit Extender (UACC-Retrofit-PoE-2Wire)
SPECIFICATIONS

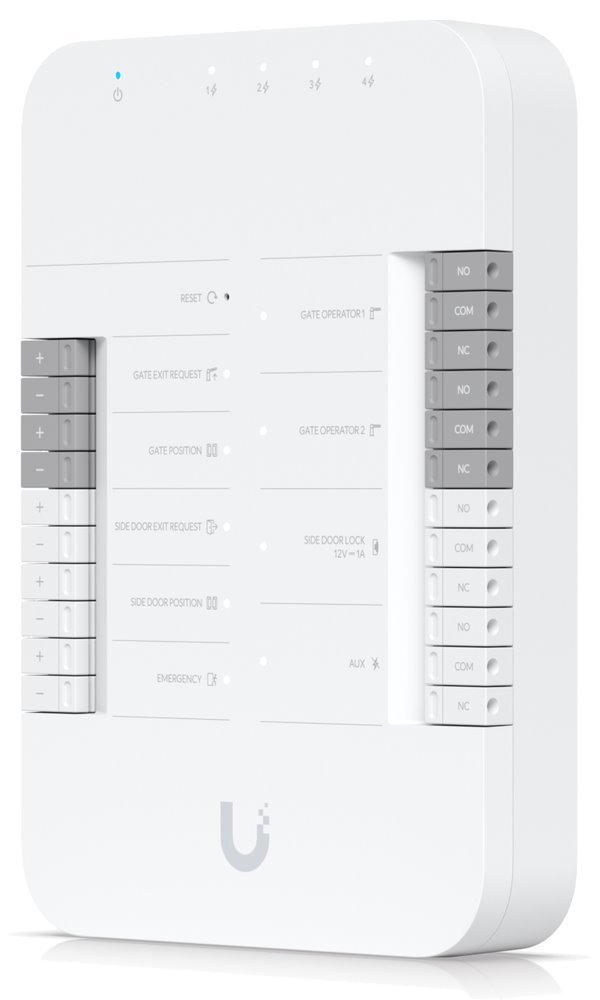

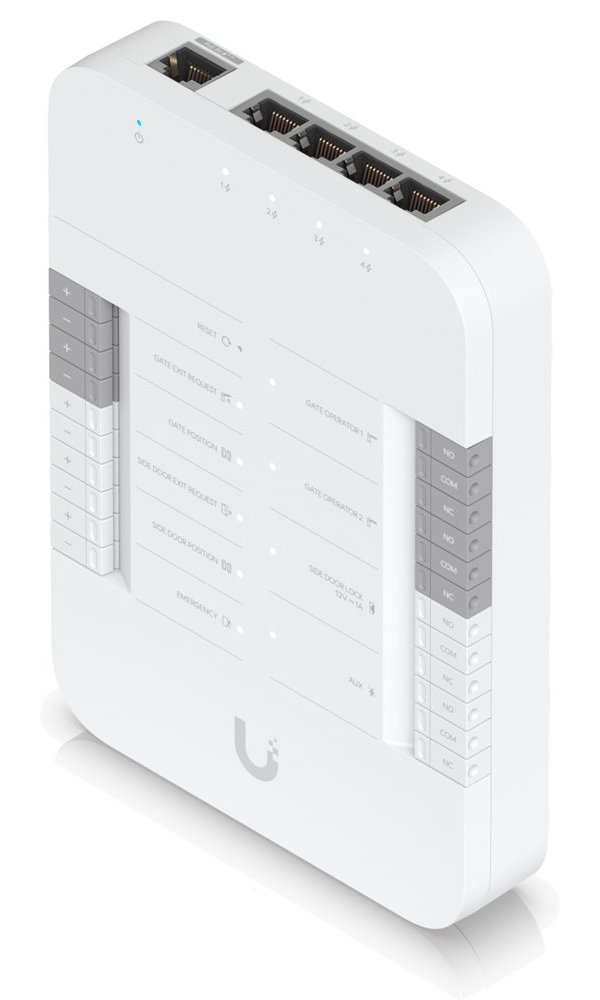

UA-Hub-Gate
Mounting: DIN
Interface:
1× reset button
1× Gate exit request
1× Gate position
1× Side door exit
1× Side door position
1× Emergency
5× 10/100/1000 Mbps RJ-45 (4× PoE outputs)
2× Operator: rated 30V DC, up to 1A
1× Aux: rated 30V DC, up to 1A
Power supply: PoE++ 802.3bt, max. power consumption 50 W
Operating temperature: -30 to +60 °C
Weight: 460 g
Dimensions: 175 × 126 × 26 mm

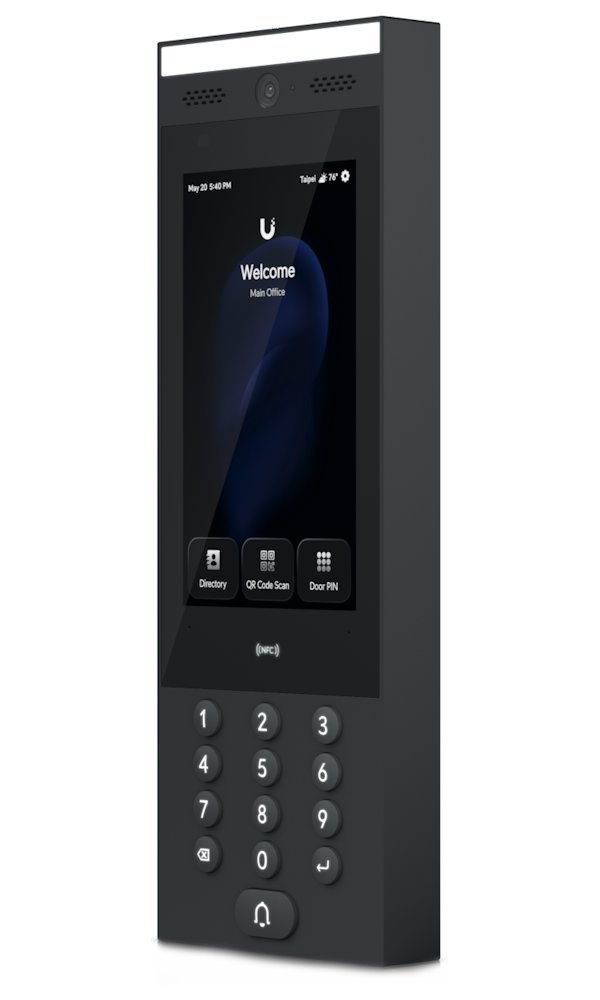

UA-G3-Intercom
Camera: 2 Mpx
Display: yes, 7" touch, 1024 × 600 px
Keyboard: yes
ID card reader: yes, Mifare (13,56 MHz)
Interface: Bluetooth, reset button
Network: 1× GbE RJ-45
Power supply: PoE (DC 48 V)
Power consumption: up to 13 W
Protection: IP65
Operating temperature: -25 to +60 °C
Dimensions: 324,8 × 113,7 × 28,3 mm

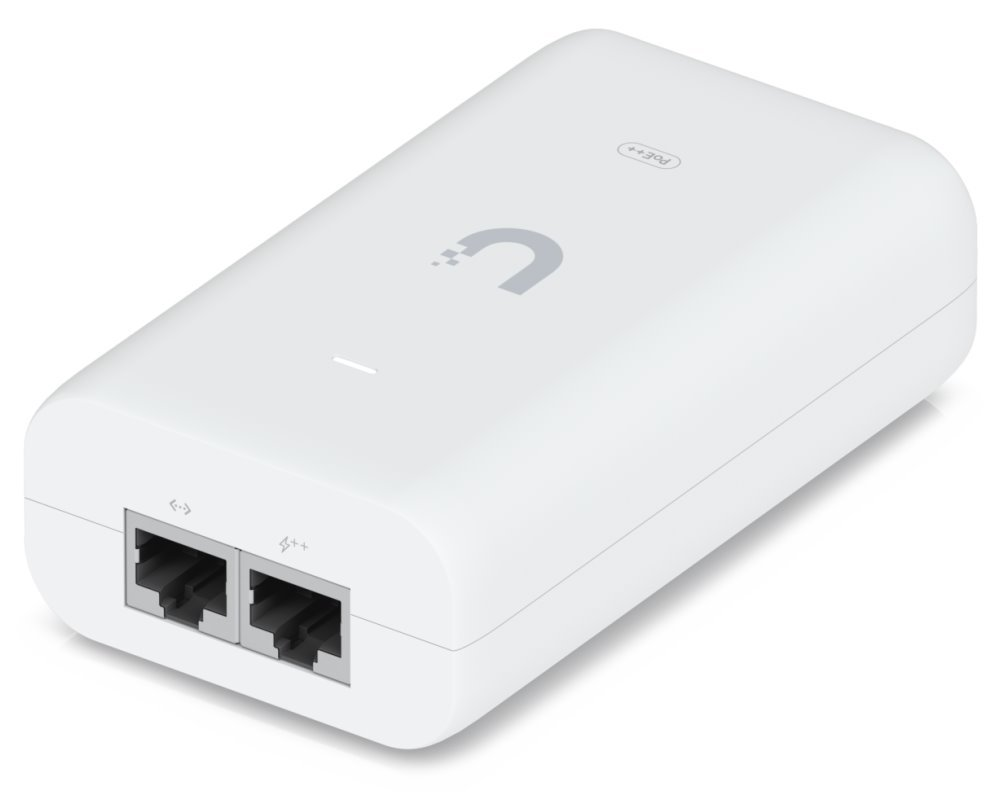

U-PoE++
Power: 60 W
Output voltage and current: PoE 48 V DC (max. 1,25 A)
Power supply: AC 100–240 V (50/60 Hz)
Interface: 2× RJ-45
Dimensions: 106 × 63 × 34 mm
UACC-Retrofit-PoE-2Wire
Transmitter
Rozhraní: 1× PoE++ input, 1× 2-wire output, 1× 2-wire coaxial cable adapter (BNC)
PoE support: yes, 1× PoE++ input (DC 50 V / 1.2 A)
Dimensions: 105 × 40 × 25 mm
Weight: 77 g + 140 g adapter
Receiver
Interface: 1× PoE/PoE+ output, 2-wire input, 1× 2-wire coaxial cable adapter (BNC)
PoE support: yes, 1× PoE+ output (DC 48 V / 0.6 A)
Dimensions: 105 × 40 × 25 mm
Weight: 79 g + 140 g adapter
Manual (Installation Guide):
G3 Gate Access Starter Kit
| Brand | |
| Type specification : | Controller |
| Manufacturer : | UBIQUITI |
| Technical specification | |
| Bezdrátové odemčení : | yes |
| Mobile application : | yes |
| Podpora bezdrátových čidel : | no |
| Podpora IP kamer : | no |
| Podpora volání : | yes |
| Outdoor use : | yes |
| Max. operating temperature (°C) : | 60 |
| Min. operating temperature (°C) : | -25 |
| Placement : | on wall |
| Upozornění přes SMS : | no |
| Control | |
| Communication interface : | LAN |
| Numeric keypad : | yes |
| Autonomous : | no |
| Inputs and outputs | |
| Interface : | LAN, Bluetooth |
| Power supply | |
| Input voltage (V) : | 48 (PoE) |
| PoE support : | yes |
| Battery | |
| Battery-Powered : | no |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Support | |
| SIM slot : | no |
| Security | |
| Smart Card Reader : | yes |
| RFID standard : | 13,56 MHz |
| Fingerprint Reader : | no |
| Additional equipment and features | |
| Certification mark : | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
