After order for 3 days

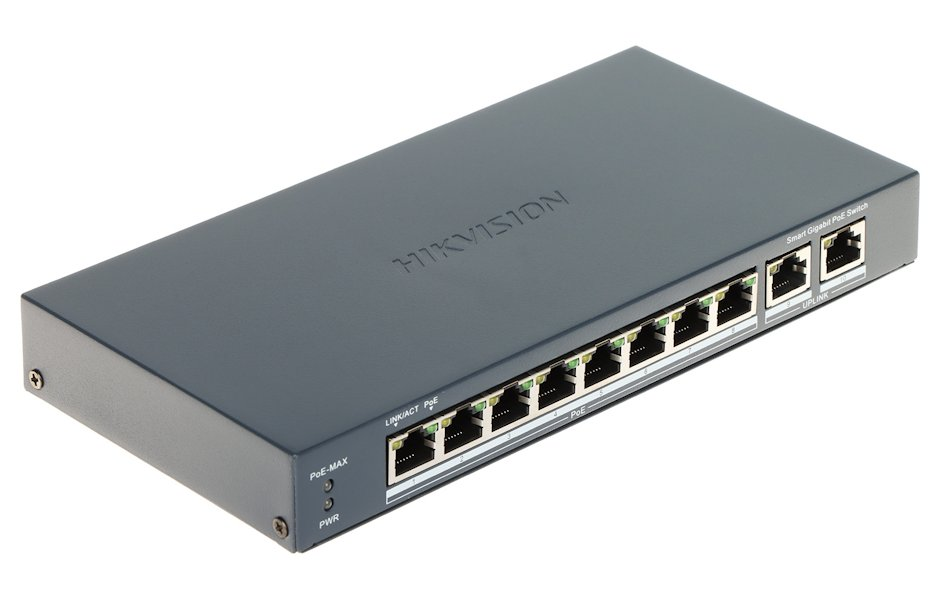

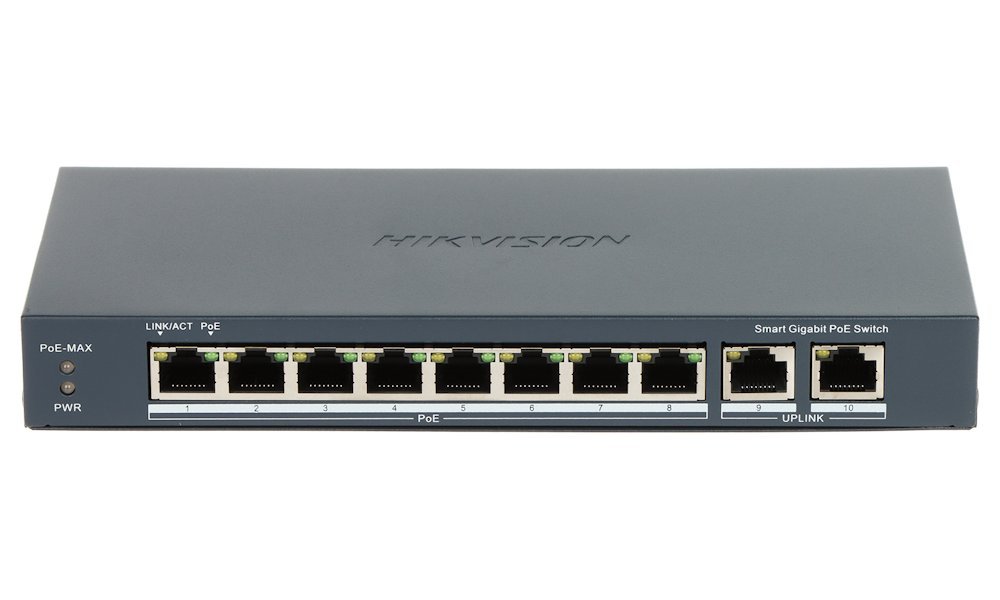

Compact managed 10-port PoE switch for powering IP cameras or other PoE-enabled devices. Features 8× PoE output 802.3af/at (max. 30 W/port) with total power output of up to 110 W, surge protection up to 6 kV and total capacity of 20 Gbps. The switch also features extend mode for data transmission and power delivery up to 300 m at 10 Mb/s (depending on cable quality).
BASIC SPECIFICATIONS
Physical properties:
Ports: 8× GbE RJ-45 (PoE), 2× GbE RJ-45
Memory: 4K MAC addresses
Switch capacity: 20 Gb/s
Forwarding rate: 14.88 Mpps
Design: desktop, wall-mountable
Power supply: external adapter DC 54 V (max. 2.22 A)
Protection: surge protection 6 kV
Operating temperature: 0 to +40 °C, humidity up to 95 %
Dimensions: 217.6 × 108.5 × 27.6 mm
Weight: 0.54 kg
PoE features:
| Brand | |
| Type specification : | Switch |
| Manufacturer : | Hikvision |
| Technical specification | |
| Fanless : | yes |
| Homologation EN50155 : | no |
| IGMP : | no |
| Switching capacity (Gbps) : | 20 |
| Management : | yes |
| Standard : | 802.3af |
| Standard : | 802.3at |
| PoE features : | Ping/watchdog |
| PoE features : | Extended 10Mb |
| PoE-in : | ne |
| PoE-out : | 802.3af/at |
| PoE-out (quantity) : | 8 |
| Outdoor use : | no |
| Placement : | na zeď |
| Placement : | samostatně stojící |
| Max. operating temperature (°C) : | 85 |
| Min. operating temperature (°C) : | -40 |
| Switch throughput (Mpps) : | 14,88 |
| OSI layer : | L2 |
| Display | |
| Display : | no |
| Network interfaces | |
| Gigabit LAN : | yes |
| LAN : | yes |
| Number of PoE ports : | 8 |
| Port Speed : | 1 Gb/s |
| Inputs and outputs | |
| RJ-45 : | 10 |
| RS-232 : | no |
| Power supply | |
| Power type : | externí adaptér |
| PoE support : | yes |
| Input Voltage (V) : | 54 (DC) |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Physical properties | |
| Color : | černá |
| Weight (g) : | 540 |
| Dimensions : | 217,6 × 108,5 × 27,6 mm |
