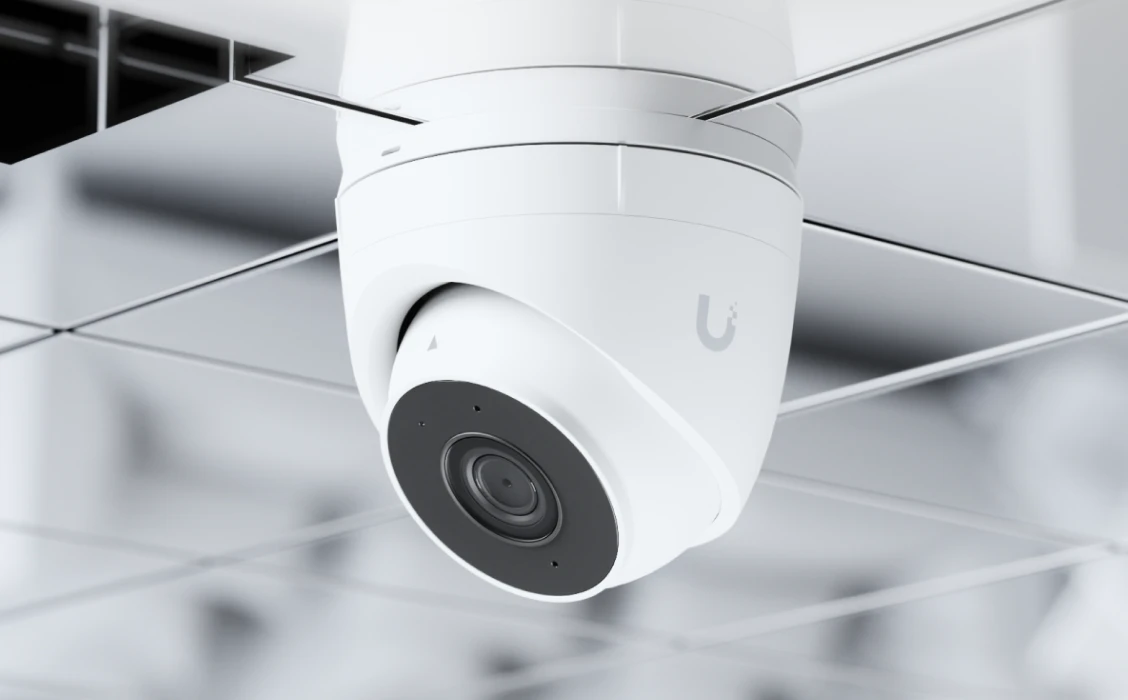

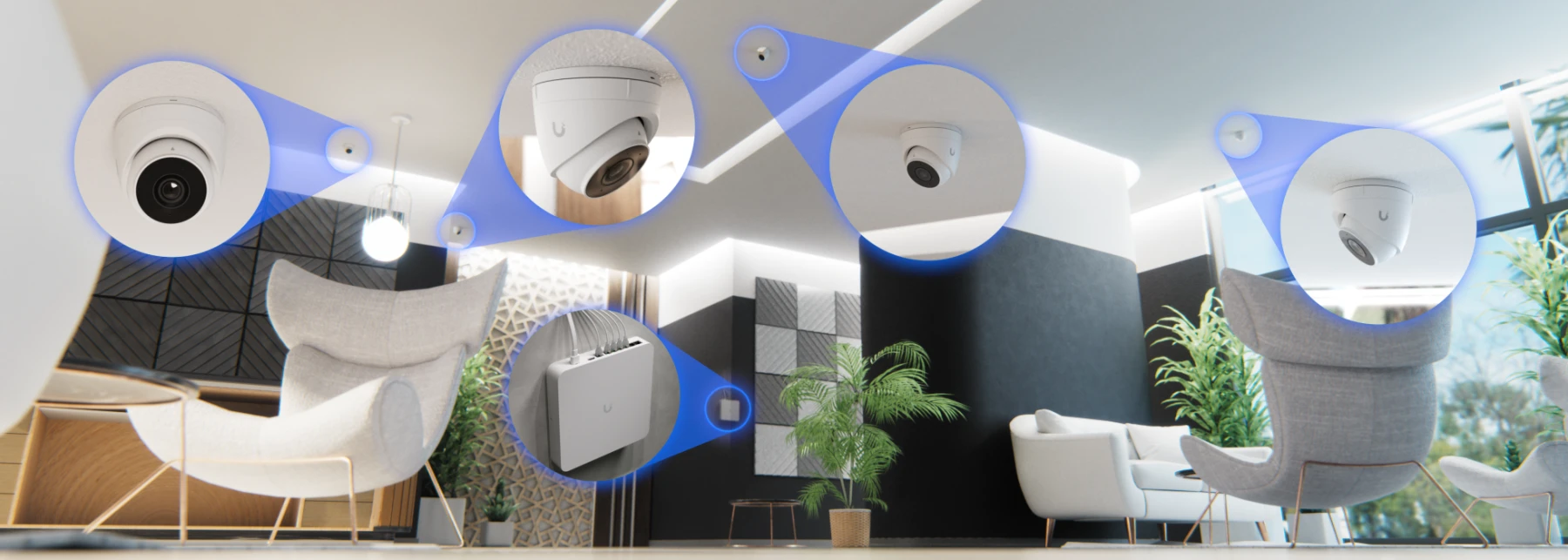

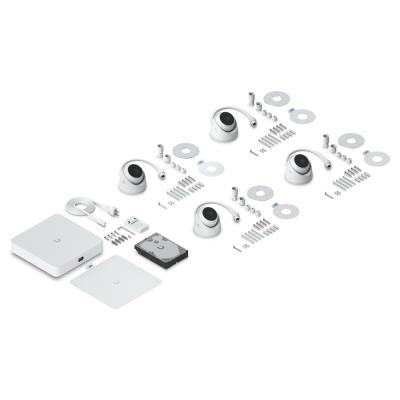

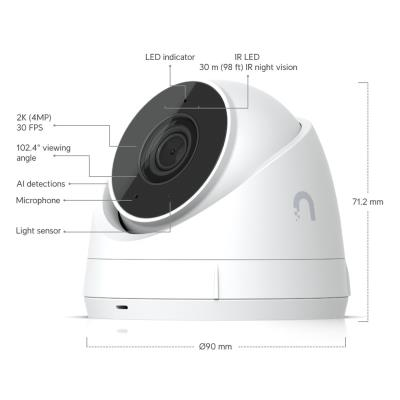

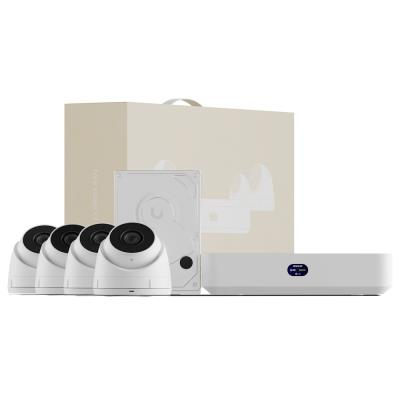

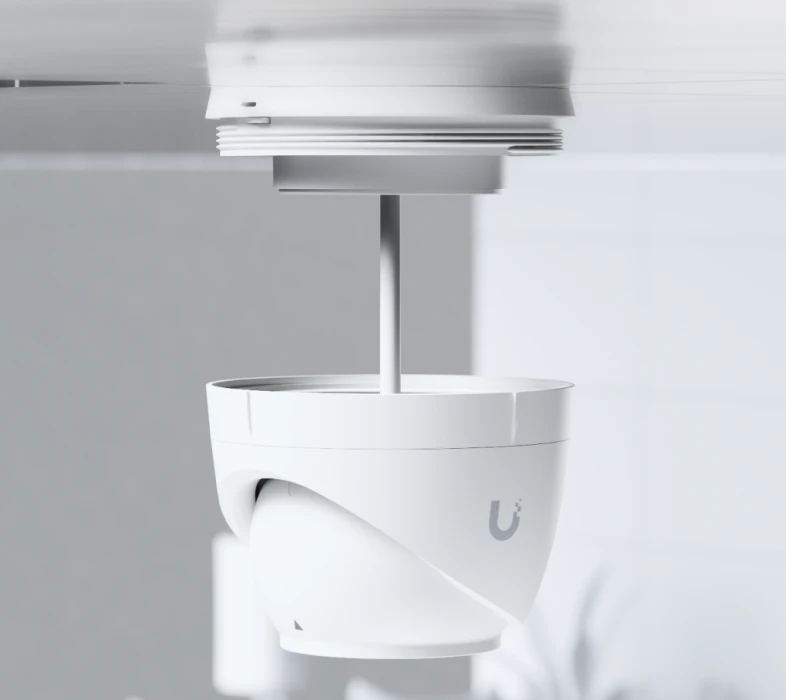

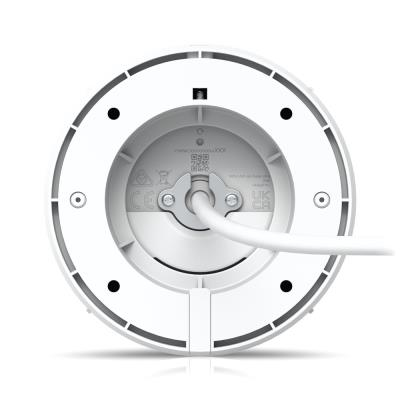

Compact UniFi Protect NVR set containing 1× UniFi Protect NVR Instant, 4× G5 Turret Ultra cameras, and 1× HDD (1 TB). Comprehensive solution for quick and easy deployment.
UniFi Protect NVR designed for small to medium installations combines the features of a network video recorder with a 6-port Gigabit PoE switch (40W budget) and integrated HDMI Viewport for live camera monitoring. Supports up to 15 Full HD, 8 2K, or 6 4K cameras and also enables management of up to 50 UniFi Access hubs for access control.

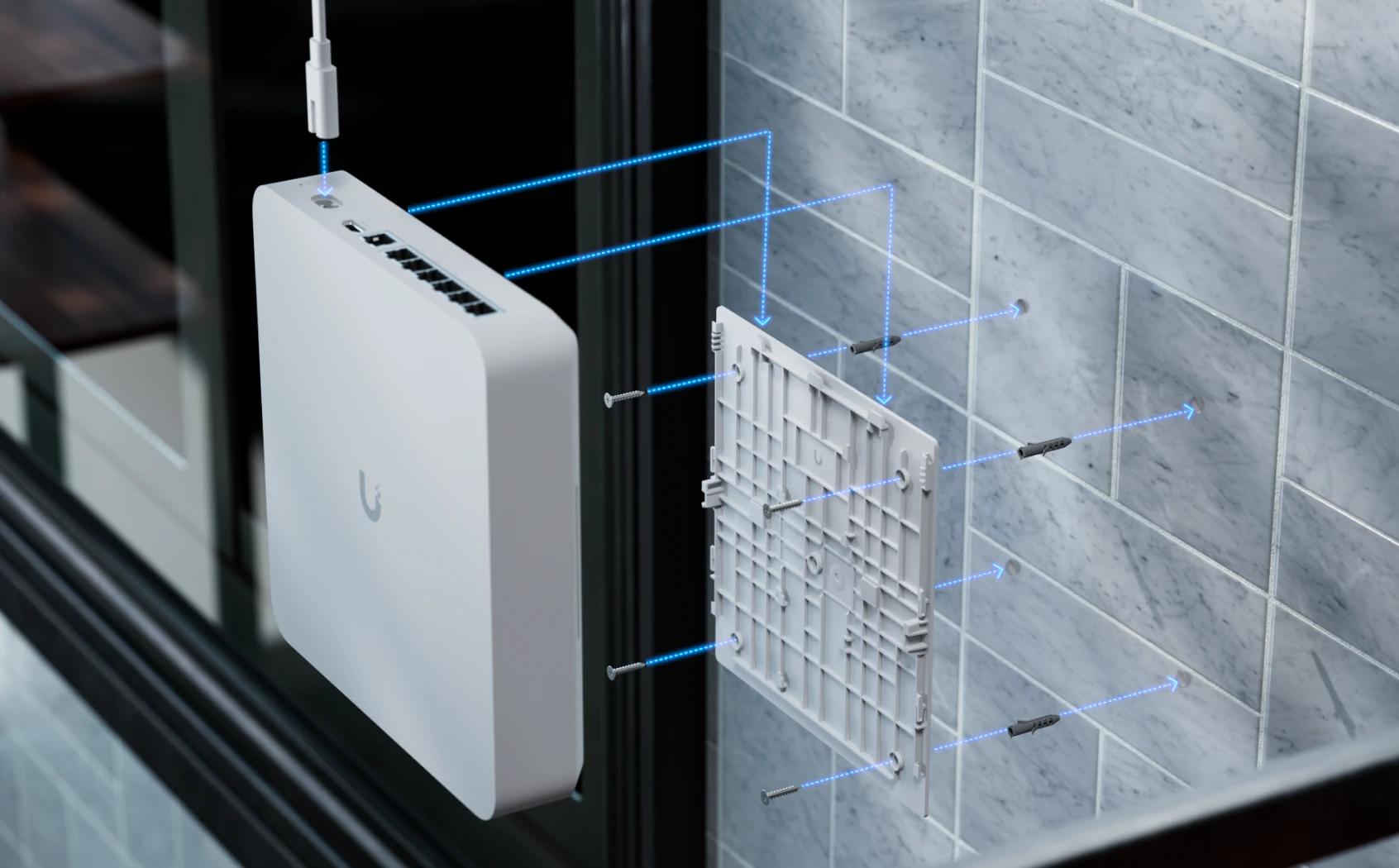

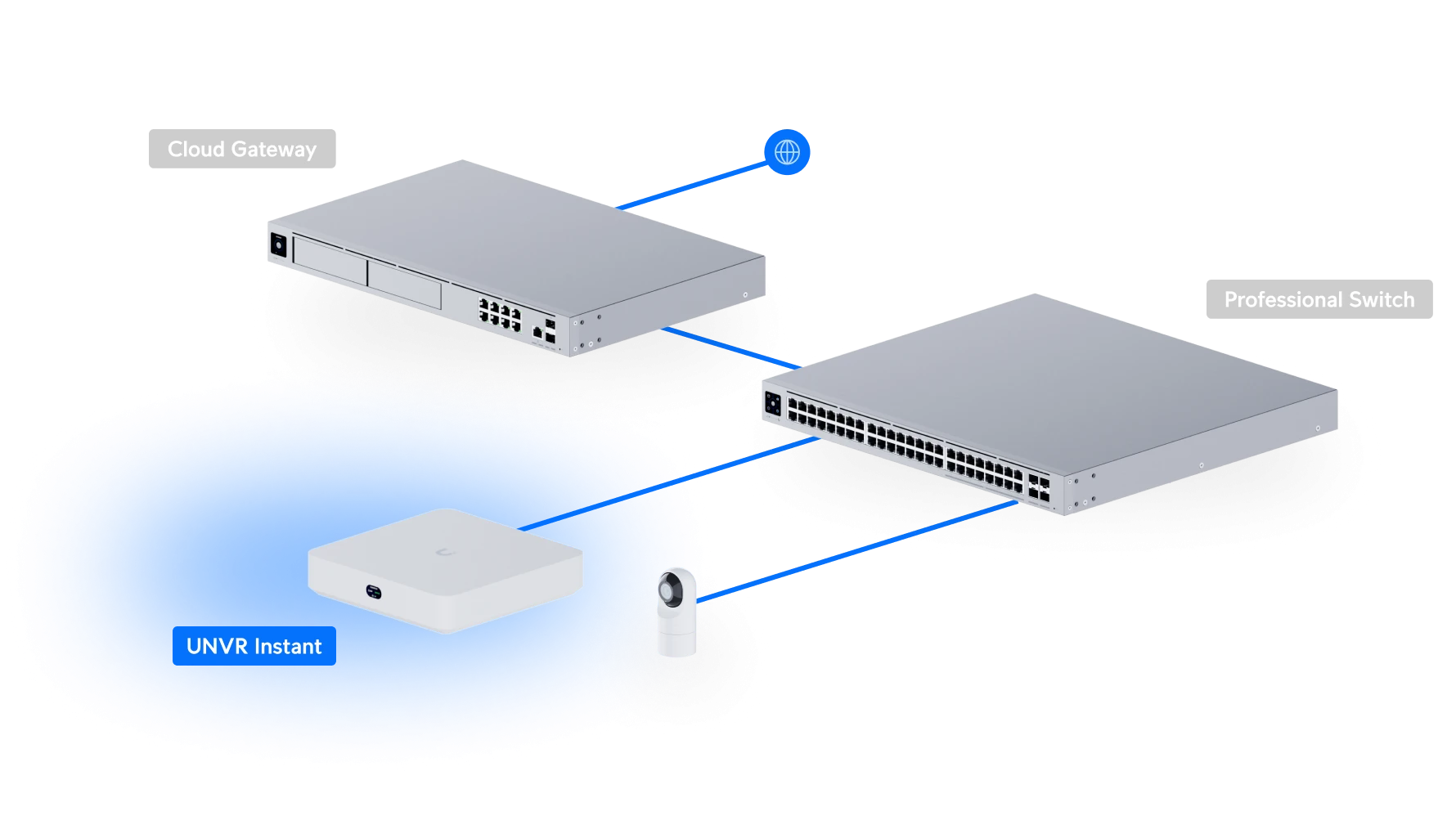

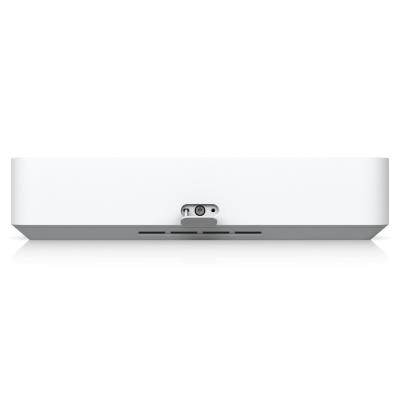

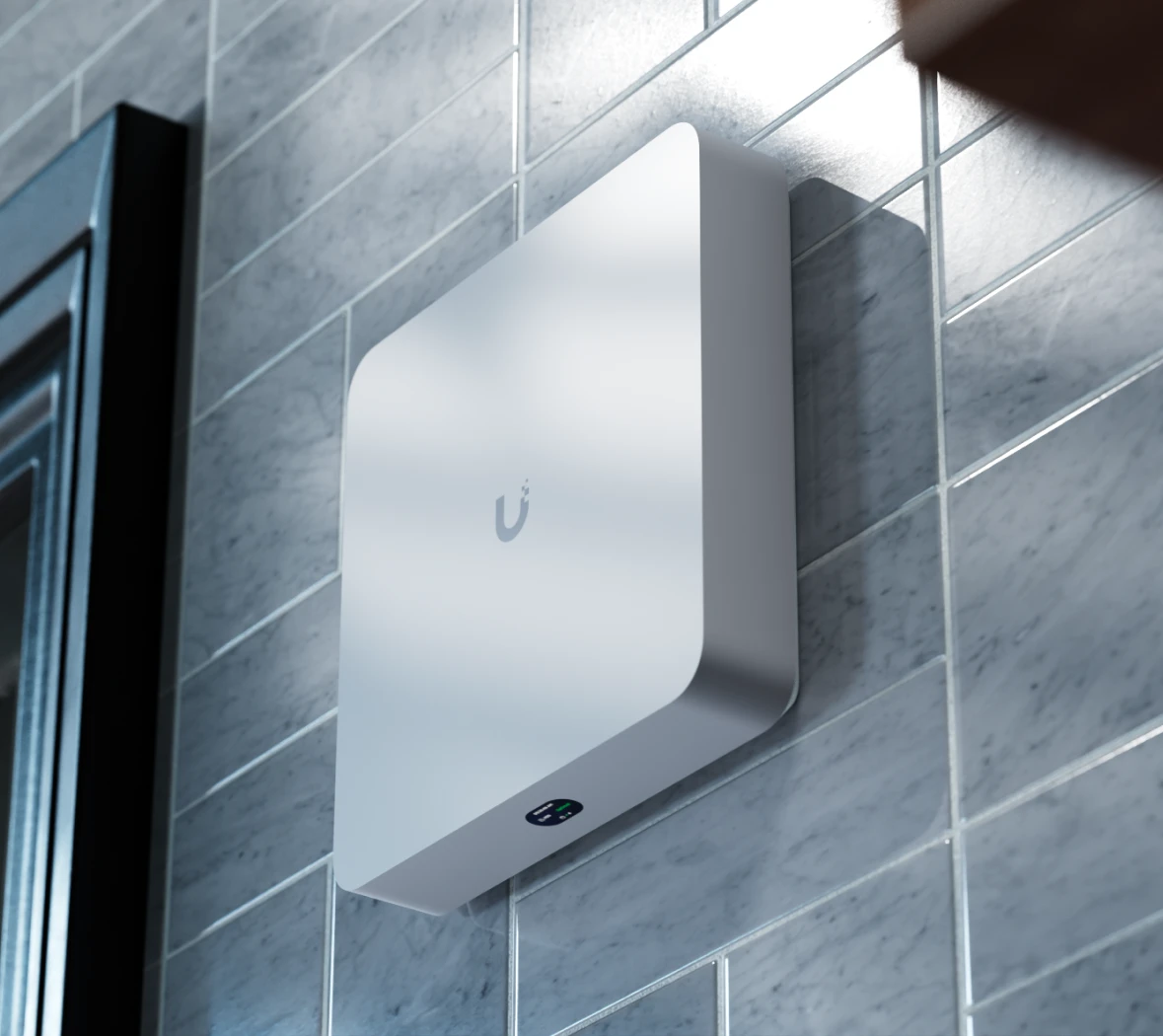

The device is equipped with a powerful quad-core ARM Cortex-A55 processor (1.7 GHz), 4 GB of RAM, and a slot for one 3.5" HDD disk. Compact design 220 × 220 × 47 mm allows wall or DIN rail installation. For connection to the camera network, it requires a UniFi Gateway or Layer 3 switch for IP address assignment.
UniFi Protect and UniFi Access Integration
NVR supports all UniFi Protect features including advanced AI functions, data protection, and vantage point. Enables unified management of camera system and physical access control from a single device.
Connectivity and Network Interface

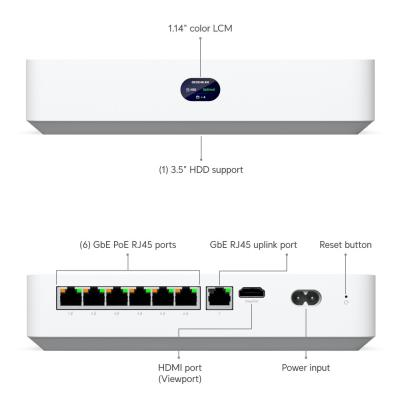

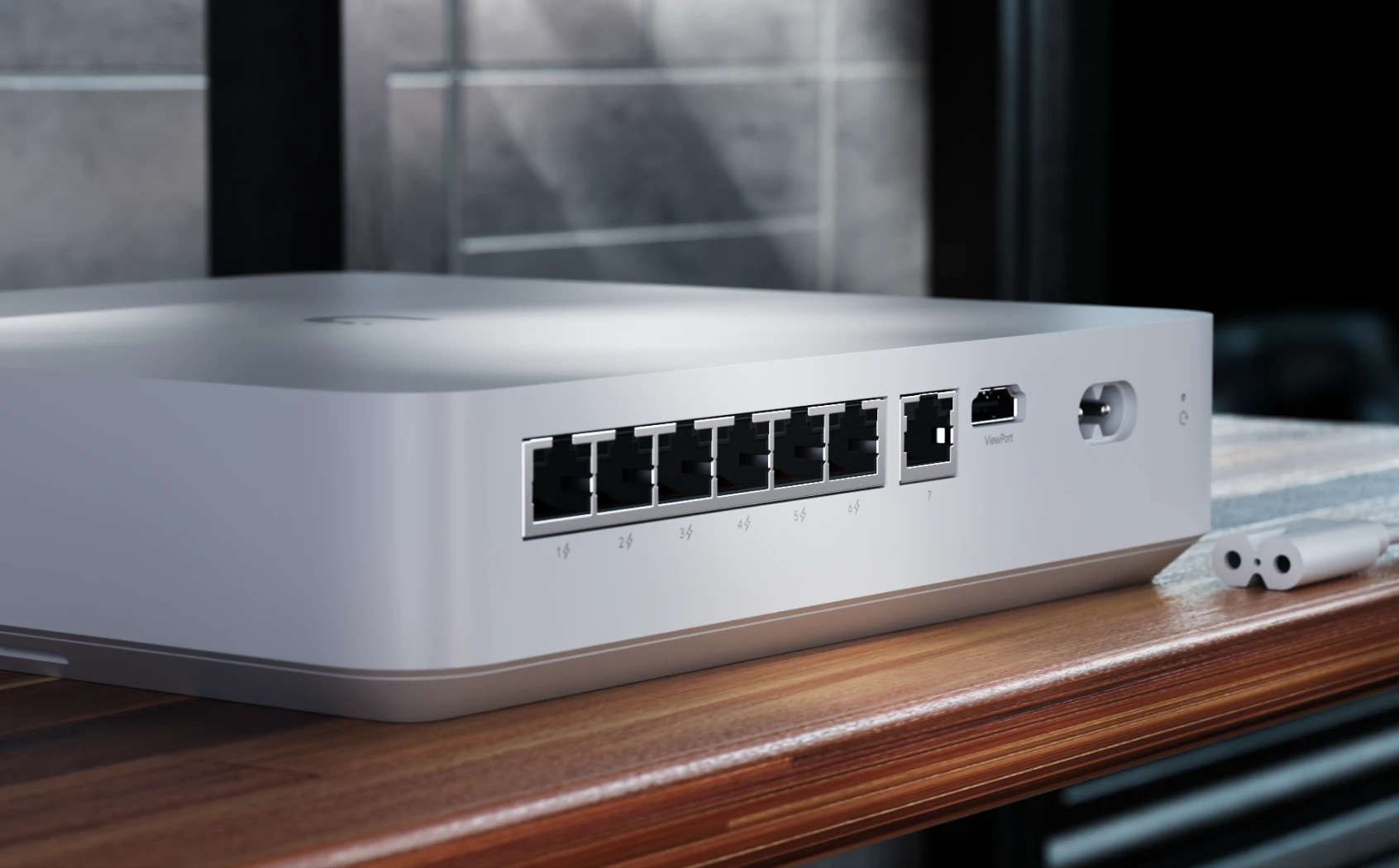

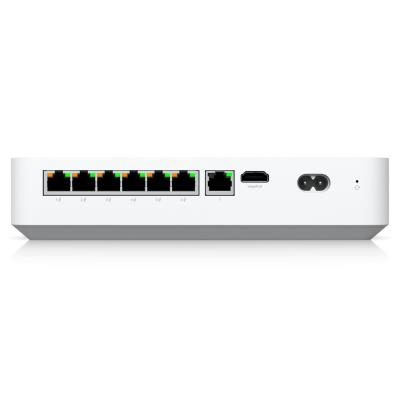

Device offers 1× Gigabit uplink port for network connection, 6× Gigabit PoE downlink ports (802.3af/at) with maximum power of 15.4W per port and total budget of 40W. HDMI port allows connection of external monitor for Viewport.
Storage Requirements

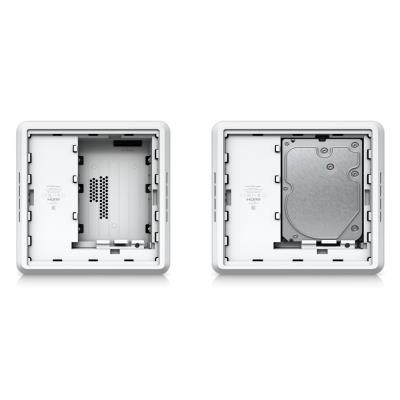

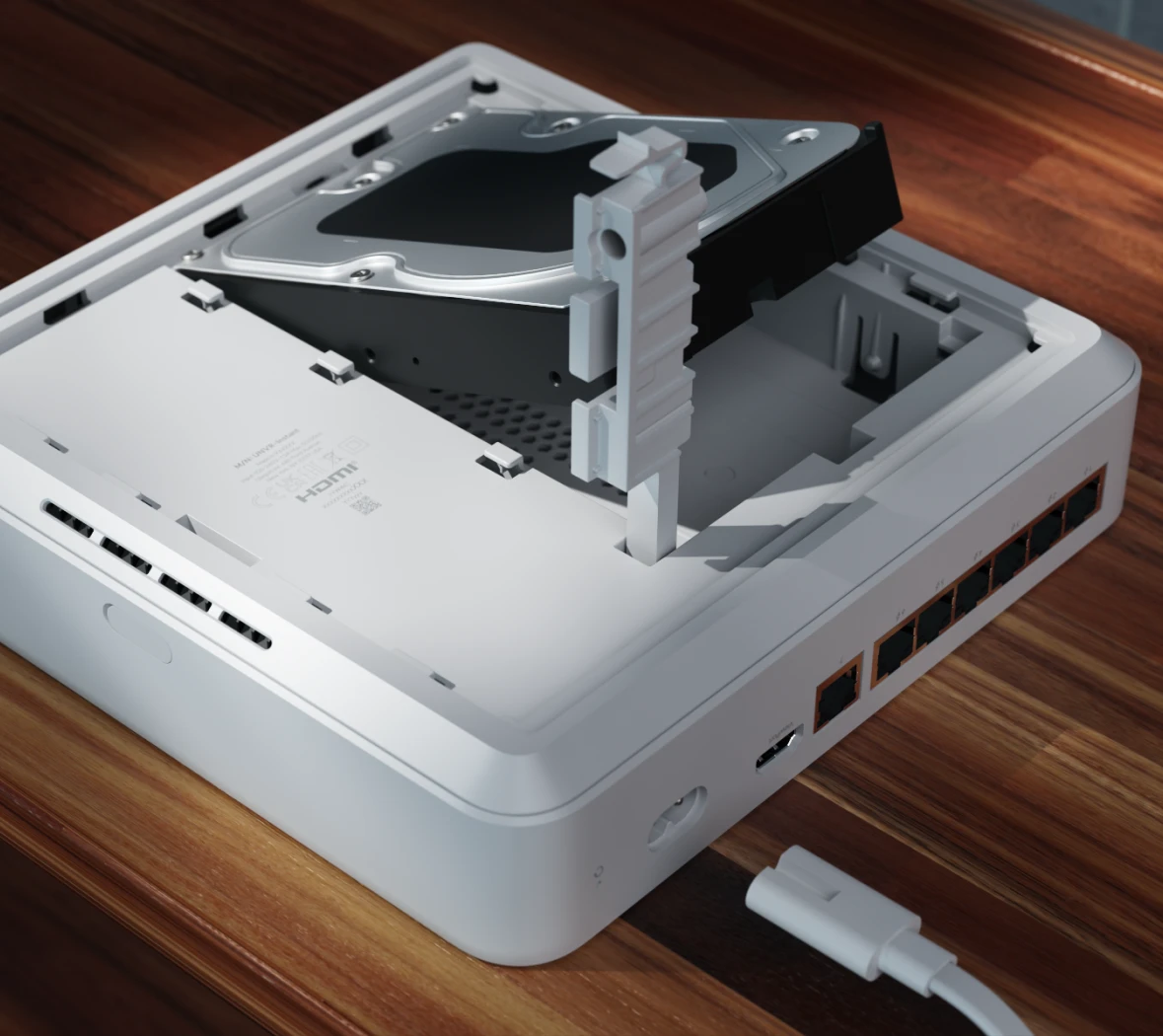

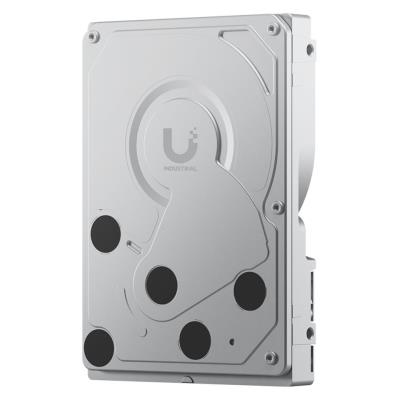

NVR supports one 2.5" or 3.5" disk (HDD or SSD) with minimum capacity of 1 TB. For optimal performance, CMR (Conventional Magnetic Recording) disks at 7200 RPM are recommended. Maximum disk consumption can be up to 11W.
BASIC SPECIFICATIONS
Processor: ARM Cortex-A55 quad-core 1.7 GHz
Memory: 4 GB
Supported Applications: UniFi Protect, UniFi Access
Camera Capacity: up to 15× Full HD / 8× 2K / 6× 4K
Access Hub Capacity: up to 50
Storage: 1× slot for 3.5" HDD or 2.5" SSD (min. 1 TB)
PoE Ports: 6× Gigabit RJ45 (total 40W, max. 15.4W/port)
Uplink: 1× Gigabit RJ45
Video Output: 1× HDMI (Viewport)

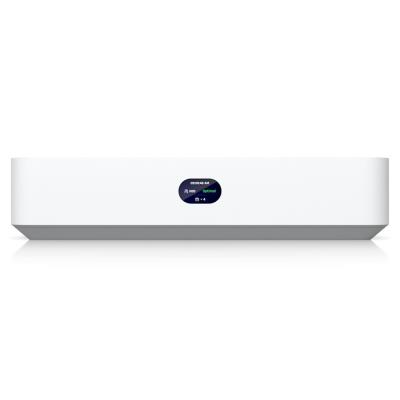

Display: 1.14" screen
Power Supply: AC/DC internal, 60W (100–240 V AC)
Power Consumption: max. 9W (without connected devices)
Management: Ethernet, Bluetooth

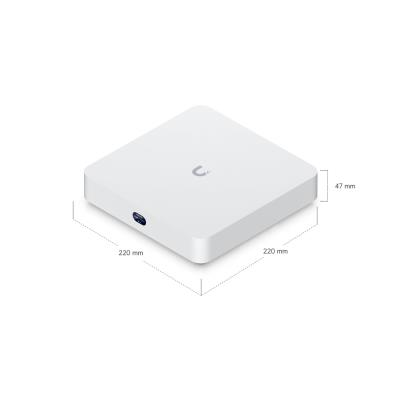

Dimensions: 220 × 220 × 47 mm
Weight: 1.04 kg
Material: polycarbonate
Operating Temperature: 0 to +40 °C
Operating Humidity: 5 to 95% (non-condensing)
Certifications: FCC, IC, CE, NDAA compliant
Manual (installation guide): https://dl.ui.com/qig/unvr-instant/#index
| Brand | |
| Type specification : | Set |
| Manufacturer : | UBIQUITI |
| Technical specification | |
| Outdoor use : | no |
| Placement : | desktop |
| Max. operating temperature (°C) : | 40 |
| Min. operating temperature (°C) : | 0 |
| Processor | |
| Processor : | ARM Cortex A55, Quad-Core, 1,7 GHz |
| Network interfaces | |
| Port Speed : | 1 Gb/s + 10 Gb/s |
| Control | |
| Communication interface : | LAN |
| Inputs and outputs | |
| Alarm in/out : | no |
| Audio in/out : | no |
| HDMI : | 1 |
| Disc slots : | 1 |
| Connectable IP cameras : | 15 |
| RJ-45 : | 7 |
| Interface : | LAN, Bluetooth |
| RS-485 port : | no |
| Video output : | no |
| Power supply | |
| Integrated battery : | no |
| Input voltage (V) : | 100-240 (AC) |
| Power supply for PoE/PoC cameras : | yes |
| PoE support : | yes |
| Power consumption - typical (W) : | 100 |
| Warranty | |
| Warranty period EU (months) : | 24 |
| Warranty period CRN (months) : | 24 |
| Physical properties | |
| Weight (kg) : | 1.04 |
| Dimensions : | 220 × 220 × 47 mm |
| Additional equipment and features | |
| Certification mark : | FCC, IC, CE, Electrical Safety |
