Unknown availability
Compact network video recorder for UniFi Protect camera systems with integrated PoE switch.
UniFi Protect NVR designed for small to medium installations combines the functions of a network video recorder with a 6-port Gigabit PoE switch (40W budget) and integrated HDMI Viewport for live camera monitoring. Supports up to 15 Full HD, 8 2K or 6 4K cameras and also enables management of up to 50 UniFi Access hubs for access control.

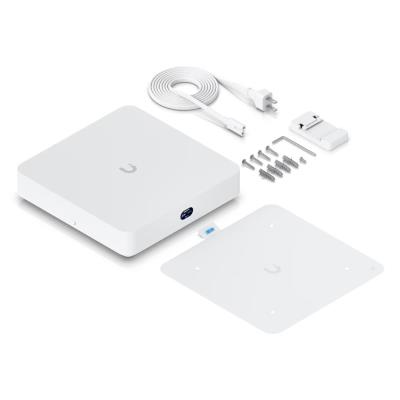

The device is equipped with a powerful quad-core ARM Cortex-A55 processor (1.7 GHz), 4 GB RAM and a slot for one 3.5" HDD disk. Compact design 220 × 220 × 47 mm allows installation on wall or DIN rail. Requires a UniFi Gateway or Layer 3 switch for IP address assignment to connect to the camera network.
UniFi Protect and UniFi Access integration
NVR supports all UniFi Protect features including advanced AI functions, data protection and vantage point. Enables unified management of camera system and physical access control from a single device.
Connectivity and network interface

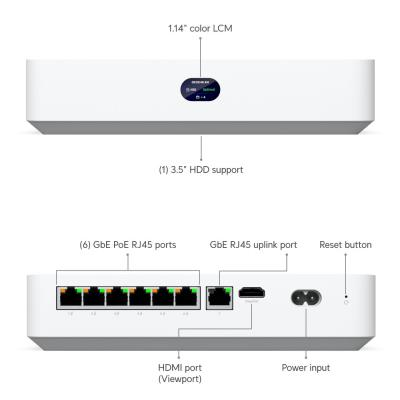

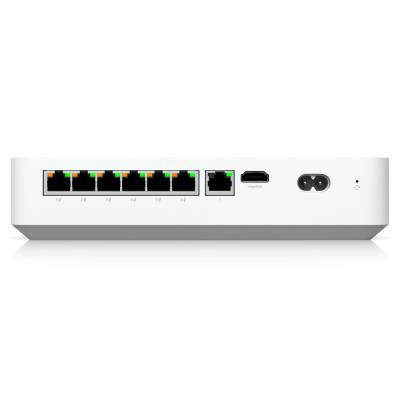

The device offers 1× Gigabit uplink port for network connection, 6× Gigabit PoE downlink ports (802.3af/at) with maximum 15.4W power per port and total budget of 40W. HDMI port allows connection of external monitor for Viewport.
Storage requirements

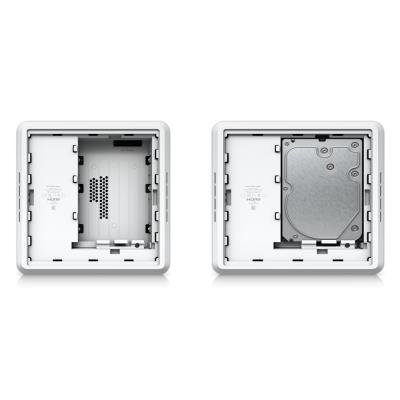

NVR supports one 2.5" or 3.5" disk (HDD or SSD) with minimum capacity of 1 TB. For optimal performance, CMR (Conventional Magnetic Recording) disks with 7200 RPM speed are recommended. Maximum disk power consumption can be up to 11W.
BASIC SPECIFICATIONS
Processor: ARM Cortex-A55 quad-core 1.7 GHz
Memory: 4 GB
Supported applications: UniFi Protect, UniFi Access
Camera capacity: up to 15× Full HD / 8× 2K / 6× 4K
Access hub capacity: up to 50
Storage: 1× slot for 3.5" HDD or 2.5" SSD (min. 1 TB)
PoE ports: 6× Gigabit RJ45 (total 40W, max. 15.4W/port)
Uplink: 1× Gigabit RJ45
Video output: 1× HDMI (Viewport)

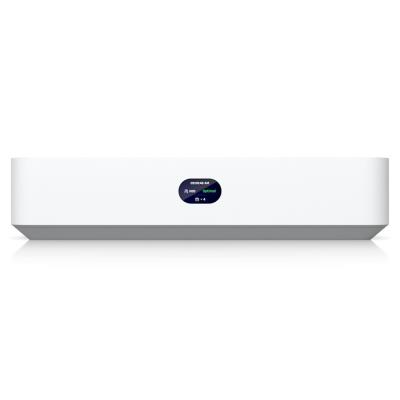

Display: 1.14" screen
Power supply: AC/DC internal, 60W (100–240 V AC)
Power consumption: max. 9W (without connected devices)
Management: Ethernet, Bluetooth

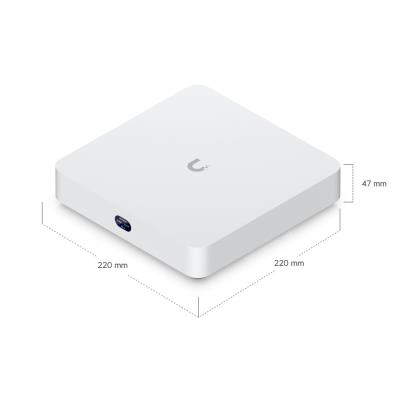

Dimensions: 220 × 220 × 47 mm
Weight: 1.04 kg
Material: polycarbonate
Operating temperature: 0 to +40 °C
Operating humidity: 5 to 95% (non-condensing)
Certification: FCC, IC, CE, NDAA compliant
Manual (installation guide): https://dl.ui.com/qig/unvr-instant-kit/#index
|
UniFi Protect – Protection & Security (cameras, doorbells/chimes, sensors, sirens) |
|
|
UniFi Access – Access Control System (readers, intercoms, hubs, locks) |
|
| Brand | |
| Type specification : | Recorder |
| Manufacturer : | UBIQUITI |
| Technical specification | |
| Outdoor use : | no |
| Placement : | desktop |
| Max. operating temperature (°C) : | 40 |
| Min. operating temperature (°C) : | 0 |
| Processor | |
| Processor : | ARM Cortex A55, Quad-Core, 1,7 GHz |
| Network interfaces | |
| Port Speed : | 1 Gb/s + 10 Gb/s |
| Control | |
| Communication interface : | LAN |
| Inputs and outputs | |
| Alarm in/out : | no |
| Audio in/out : | no |
| HDMI : | 1 |
| Disc slots : | 1 |
| Connectable IP cameras : | 15 |
| RJ-45 : | 7 |
| Interface : | LAN, Bluetooth |
| RS-485 port : | no |
| Video output : | no |
| Power supply | |
| Integrated battery : | no |
| Input voltage (V) : | 100-240 (AC) |
| Power supply for PoE/PoC cameras : | yes |
| PoE support : | yes |
| Power consumption - typical (W) : | 100 |
| Warranty | |
| Warranty period EU (months) : | 24 |
| Warranty period CRN (months) : | 24 |
| Physical properties | |
| Weight (kg) : | 1.04 |
| Dimensions : | 220 × 220 × 47 mm |
| Additional equipment and features | |
| Certification mark : | FCC, IC, CE, Electrical Safety |
