It will be in stock 15.6.2026

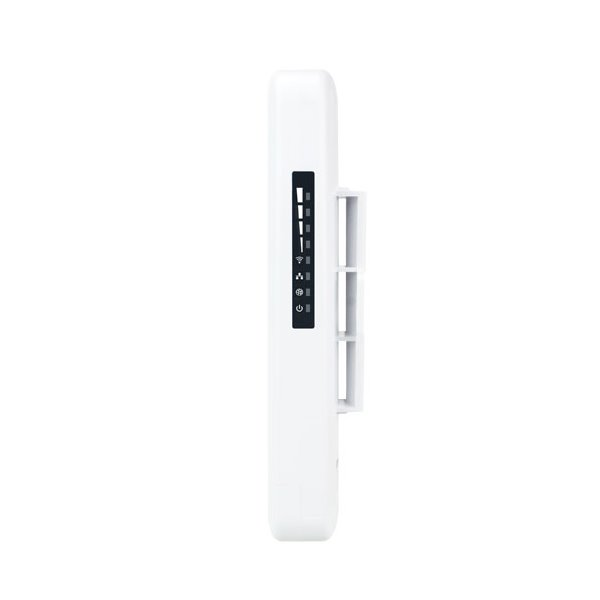

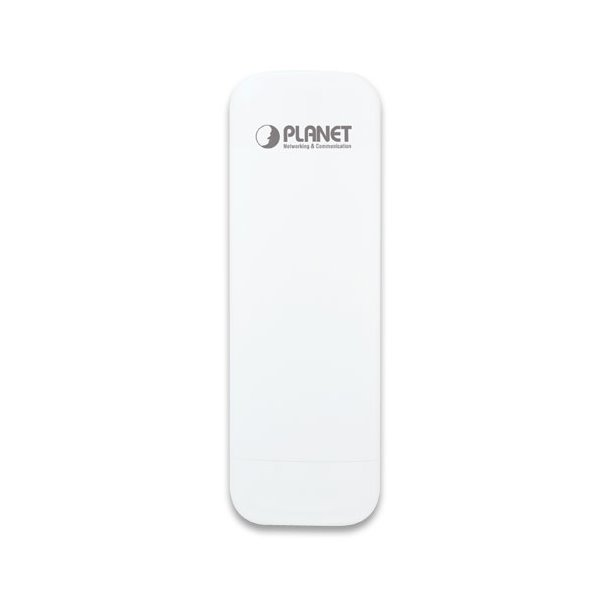

Outdoor wireless access point with integrated router. Features a 14 dBi integrated dual-polarized antenna for stable reception.
The access point is based on 5 GHz radio technology standard 802.11a/n/ac with MU-MIMO Wave 2 support, achieving transfer speeds of up to 900 Mbps. Additionally, there is an option to switch the unit to PtP mode (master or slave), which significantly reduces the time required for unit configuration.
Also present are two RJ-45 ports with 10/100/1000 Mbps speed, one of which is equipped with PoE+ technology standard 802.3at, through which the unit is efficiently powered.
Support for WAN connection DHCP, static IP and PPPoE, support for port forwarding, DMZ, DHCP server in Gateway/WISP mode.
The unit is resistant to adverse environmental conditions according to IP55 certification.
BASIC SPECIFICATIONS
Wi-Fi and connectivity specifications:
Wi-Fi standard and transfer support: IEEE 802.11a/n/ac/ac-Wave2 with transfer speed up to 900 Mb/s
Frequency band:
FCC: 5180–5240 GHz, 5745–5825 GHz
ETSI: 5180–5700 GHz
Number of antennas and their output: 14 dBi integrated dual-polarized
Transmit power: 25 dBm
Interface: 2× 10/100/1000Base-T, RJ-45 Ethernet (LAN + PoE)
Spanning Tree Protocol support: no
Wireless transmission encryption: 64/128bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X
Wireless modes: Access Point, Gateway, Repeater, Super WDS, WISP
Max. connected clients: up to 64 wirelessly (recommended 50)
Multiple SSID: up to 4 networks
IAPP: no
Integrated DHCP server: yes
Client isolation support: yes
MAC address filtering: yes
Management: yes, web-based device management, management via PLANET DDNS/Easy DDNS, UPnP support, IGMP Proxy, PPTP/L2TP/IPSec VPN Pass-through, SNMP v1/v2c/v3, MIB I/II, Private MIB
Physical properties:
Operating temperature: -20 to +70 °C
Power supply: 12 V/1 A DC jack, or 48 V/0.5 A DC for IEEE 802.3at PoE+, power consumption up to 10 W
Dimensions: 260 × 87 × 38 mm
Weight: 405 g
Devices are supplied in accordance with the operating conditions of technologies in the Czech Republic in the 5 GHz band and are subject to General Authorization No. VO-R/12/09.2010-12 and the Telecommunications Act.
The device is equipped with automatic regulation, which the user can disable. Similarly, the user can also change the frequency profile settings. The user can do this via a special URL in the device's web interface (hw_domain_reg.htm). Typically, this involves changing the list of available frequencies according to ETSI and FCC standards.
However, this does not relieve the user of the obligation to set the device in accordance with VO-R:
- 5.2 GHz band: 5150–5250 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.3 GHz band: 5250–5350 MHz with automatic regulation: max 200 mW (23 dBm) without regulation: max 100 mW (20 dBm)
- 5.4 GHz band: 5450–5725 MHz with automatic regulation: max 1 W (30 dBm) without regulation: max 500 mW (27 dBm)
- 5.8 GHz band: 5725–5875 MHz, power max. 25 mW with built-in antenna or antenna specified by manufacturer
According to the wording of VO, under letter g) it is specified that automatic regulation must regulate by at least -3 dB. Automatic regulation is not mandatory; if the device does not have regulation, then it is sufficient to calculate radiated powers 3 dB lower for use.
| Brand | |
| Type specification : | Access point/Repeater |
| Manufacturer : | PLANET Technology |
| Technical specification | |
| FTTH : | no |
| Management : | yes |
| Mobile connection : | no |
| Network Management System (NMS) : | yes |
| Outdoor use : | yes |
| Indoor use : | no |

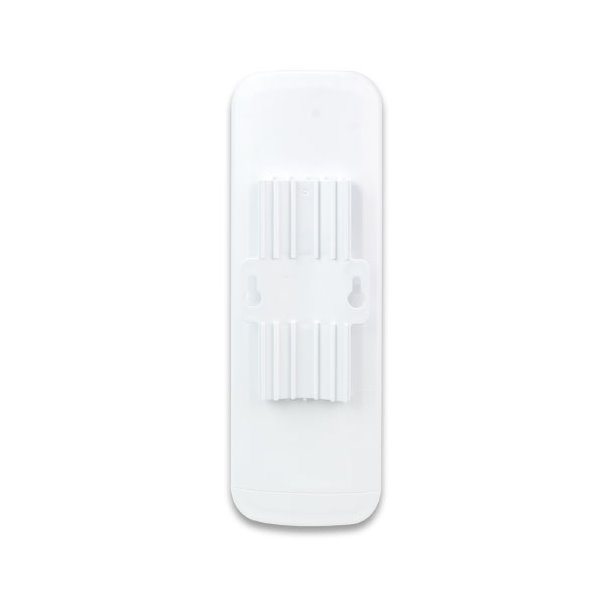

| Placement : | pole mount |
| Industrial design : | no |
| QoS a bandwidth shaper : | no |
| VPN : | yes |
| Communication | |
| 3G support : | no |
| 4G/LTE support : | no |
| Wi-Fi Standard : | 802.11a/n/ac |
| Network interfaces | |
| Wi-Fi frequency : | 5000 MHz |
| Gigabit LAN : | yes |
| LAN : | yes |
| Port Speed : | 1 Gb/s |
| Wi-Fi : | yes |
| Antenna | |
| Antenna type : | internal |
| Inputs and outputs | |
| Total number of ports : | 2 |
| RJ-45 : | 2 |
| Power supply | |
| Power type : | external adapter |
| Power type : | PoE active (802.3at) |
| PoE support : | yes |
| Support | |
| SIM slot : | no |
| Security | |
| Smart Card Reader : | no |
| Fingerprint Reader : | no |
| Physical properties | |
| Color : | white |
| Weight (g) : | 405 |
| Dimensions : | 260 × 87 × 38 mm |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
