Unknown availability

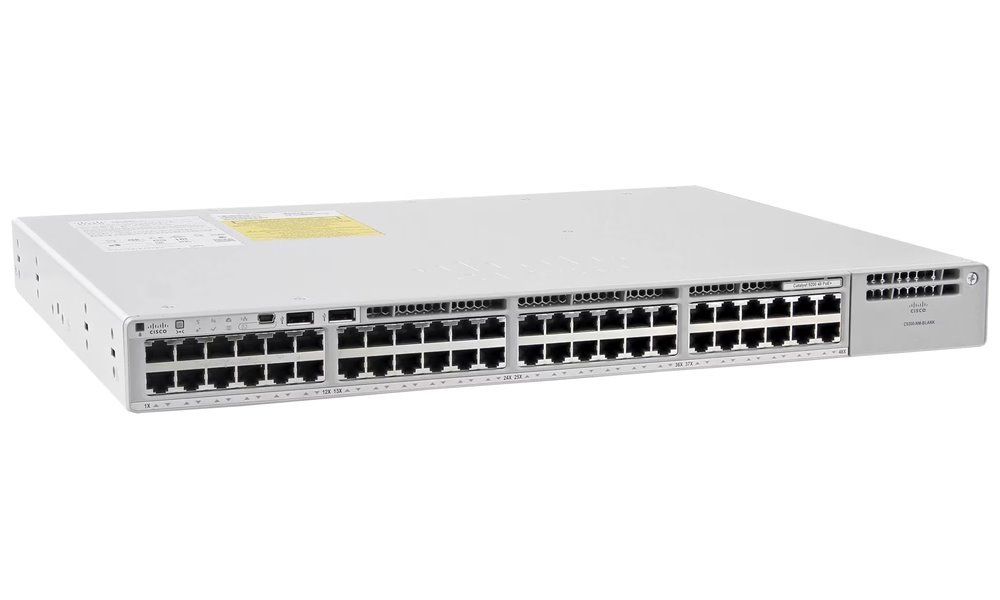

Manageable switch offering 48 RJ-45 ports with PoE+ (802.3af/at) support. The total power available for network-based power supply can be up to 740 W (up to 1440 W with a secondary power source). The switch's switching capacity is up to 176 Gbps, and routing speed is up to 130.95 Mpps. The Catalyst C9200 series modular uplinks allow flexible network connectivity configurations via interchangeable network modules. This switch supports various uplink module types (e.g., 1G, 10G, 25G), enabling bandwidth and uplink speed adjustments to meet specific network requirements.
BASIC SPECIFICATIONS
Ports: 48× RJ-45 10/100/1000 Mbps PoE+, 2× RJ-45 (console + management), 1× mini USB-B (console), 2× USB 2.0
PoE: yes, 740 W
Switching Capacity: 176 Gbps
Routing Speed: 130.95 Mpps
Dimensions: 445 × 350 × 44 mm
Weight: 5.5 kg
| Brand | |
| Type specification : | Switch |
| Manufacturer : | CISCO |
| Technical specification | |
| Fanless : | no |
| Homologation EN50155 : | no |
| IGMP : | yes |
| Switching capacity (Gbps) : | 176 |
| Management : | yes |
| PoE-in : | no |
| PoE-out : | 802.3af/at |
| PoE-out (quantity) : | 48 |
| Outdoor use : | no |
| Placement : | rack |
| Max. operating temperature (°C) : | 45 |
| Min. operating temperature (°C) : | -5 |
| Switch throughput (Mpps) : | 130,95 |
| Stackable : | 160Gb stack |
| OSI layer : | L3 dynamic |
| Display | |
| Display : | no |
| Network interfaces | |
| Gigabit LAN : | yes |
| Počet PoE portů : | 48 |
| Port Speed : | 1 Gb/s |
| Inputs and outputs | |
| RJ-45 : | 48 |
| RJ-45 konzole/management (počet) : | 2 |
| RS-232 port : | no |
| USB 2.0 : | 2 |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Power type : | internal power supply |
| PoE support : | yes |
| Input Voltage (V) : | 100 - 240 (AC) |
| Warranty | |
| Warranty period EU (months) : | 24 |
| Warranty period CRN (months) : | 24 |
| Physical properties | |
| Color : | grey |
| Weight (g) : | 5500 |
| Dimensions : | 445 × 350 × 44 mm |
| Additional equipment and features | |
| Certification mark : | FCC, ICES, CISPR, AS/NZS, EN, BSMI, VCCI |
