After order for 3 days
Professional wall bracket for panoramic cameras with high load capacity

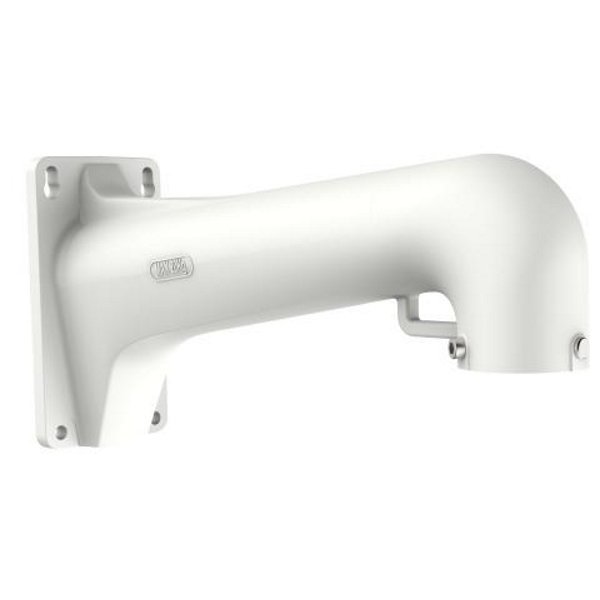

The Hikvision DS-1603ZJ wall bracket is specially designed for secure mounting of PanoVu series panoramic cameras on vertical surfaces. Made of high-quality aluminum alloy with a white surface finish that ensures long-term durability even in demanding outdoor conditions.
The bracket features a robust construction with a load capacity of up to 20 kg, allowing installation of heavier camera systems. The integrated safety hook for securing the safety rope significantly facilitates camera installation and increases the overall safety of the installation.
BASIC SPECIFICATIONS
Model: DS-1603ZJ
Type: wall mounting bracket for PanoVu cameras
Material: aluminum alloy
Color: Hikvision white
Dimensions: 364.1 × 182.0 mm (14.3" × 7.2")
Weight: 1400 g (3.09 lb.)
Maximum load capacity: 20 kg (44 lb.)
Mounting holes: 2× ⌀ 9 mm (0.35"), 2× ⌀ 12 mm (0.47")
Recommendation: waterproof rubber is necessary for outdoor applications
| Brand | |
| Type specification : | Accessories |
| Manufacturer : | Hikvision |
| Technical specification | |
| Outdoor use : | yes |
| Warranty | |
| Warranty period EU (months) : | 36 |
| Warranty period CRN (months) : | 36 |
| Usage and purpose | |
| Type of accessories : | držák |
| Physical properties | |
| Color : | bílá |
| Weight (kg) : | 1.4 |
| Dimensions : | 364,1 × 182 × 98 mm |
