After order for 3 weeks
Compact dual SIM multi-network router with eSIM technology offering high-speed 5G connectivity for data-intensive applications.

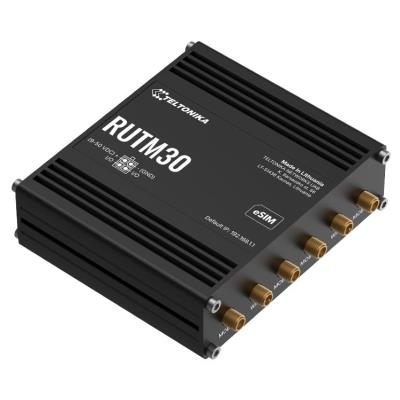

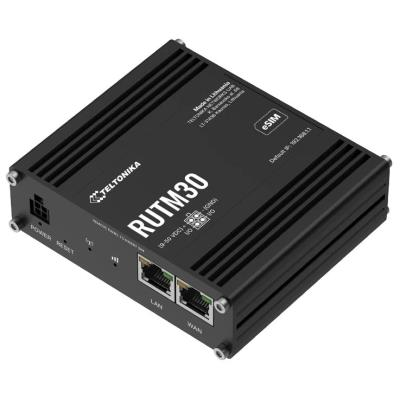

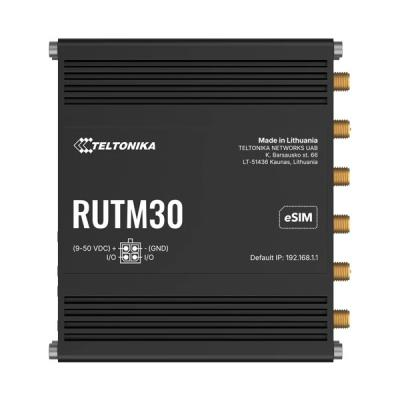

The RUTM30 is a powerful industrial router in a compact aluminum body, delivering top-tier connectivity via 5G networks with speeds up to 2.4/3.4 Gbps for downloads and 900/550 Mbps for uploads. With support for dual SIM cards and eSIM technology, it ensures continuous connectivity with automatic failover in case of primary link failure.
The router features two gigabit Ethernet ports (WAN and LAN) and dual-band Wi-Fi 5 with transfer speeds of up to 867 Mbps. The wide operating temperature range of -40 °C to 75 °C and the robust aluminum enclosure make it ideal for deployment in demanding industrial environments and IoT applications requiring reliable high-speed connectivity.
Advanced Network Functions
The router offers a wide range of network capabilities including VoIP passthrough, connection monitoring, firewall, hotspot, DHCP, QoS, DNS over HTTPS, DDNS, network backups, load balancing, and advanced traffic management.
Professional-Grade Security
Integrated TPM 2.0 module, authentication, firewall, attack prevention, VLAN, mobile data control, web filter, access control, SSL certificate generation, and 802.1x support ensure high-level security.
Extended Management Options
The device can be managed via web interface, FOTA updates, SSH, SMS, call, email, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, and the RMS remote management system.
BASIC SPECIFICATIONS
Processor: MediaTek, dual-core, 880 MHz, MIPS1004Kc
Memory: 256 MB DDR3 RAM, 16 MB NOR flash, 256 MB NAND flash
Mobile Connectivity: 5G Sub-6GHz SA/NSA, 4G LTE Cat 19, 3G

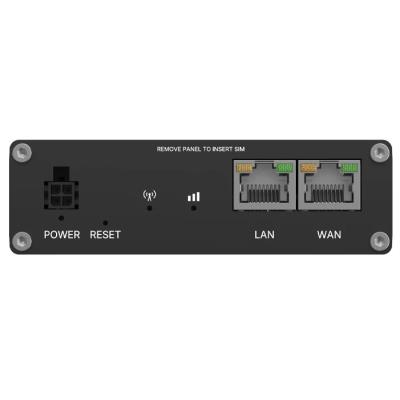

Ethernet: 2× RJ-45 ports 10/100/1000 Mbps (1× WAN, 1× LAN)
Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5), dual-band, MU-MIMO

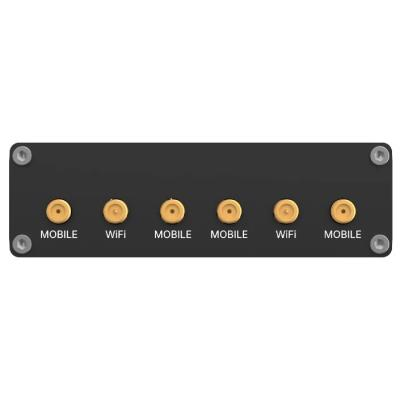

Antenna Connectors: 4× SMA for mobile networks, 2× RP-SMA for Wi-Fi
SIM: 2× mini SIM slots (2FF), 1× integrated eSIM
Power Supply: DC 9–50 V, 4-pin industrial connector
Operating Temperature: -40 °C to 75 °C
Dimensions (W × H × D): 100 × 93.7 × 30 mm
Weight: 319 g
Operating System: RutOS (Linux based on OpenWrt)
| Brand | |
| Type specification : | Router |
| Manufacturer : | TELTONIKA |
| Technical specification | |
| DHCP : | yes |
| Wi-Fi 5 GHz (Mbps) : | 867 |
| LTE/4G/5G (Mbps) : | 3400 |
| Ethernet (Mbps) : | 1000 |
| IPv6 support : | ano |
| Outdoor use : | no |
| Indoor use : | yes |
| Max. operating temperature (°C) : | 75 |
| Data Rate (Mbps) : | 867 (5GHz), 3400 (5G) |
| Min. operating temperature (°C) : | -40 |
| Placement : | DIN rail |
| Placement : | wall mounting |
| Placement : | desktop |
| NAND (MB) : | 256 |
| Ingress protection : | IP30 |
| Processor | |
| Processor : | MediaTek MIPS 1004KC, 880 MHz |
| Memory | |
| Memory size (MB) : | 16 |
| Display | |
| Display : | no |
| Communication | |
| 3G support : | yes |
| 4G/LTE support : | yes |
| 5G support : | yes |
| Wi-Fi : | yes |
| Network interfaces | |
| Wi-Fi frequency : | 2400 MHz/5000 MHz |
| Gigabit LAN : | yes |
| LAN : | yes |
| Standards : | 802.11b/g/n/ac/ac-wave 2, 802.3, 802.3az, 802.3u, 802.11r, 802.11e, 802.11w, 802.11s, 802.11k |
| Operation mode : | AP, Router |
| Port Speed : | 1 Gb/s |
| Standard Wi-Fi : | 802.11b/g/n/ac/ac-wave2 |
| Encryption : | WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP |
| Wi-Fi : | yes |
| WEP security : | no |
| WPA security : | yes |
| WPA2 security : | yes |
| WPA3 security : | yes |
| Antenna | |
| Connectable antennas : | 6 |
| Antenna type : | detachable |
| Inputs and outputs | |
| RJ-45 : | 2 |
| Interface : | LAN, WAN, 4G/LTE, 5G, Wi-Fi |
| Slots : | 1x LAN, 1x WAN, 2x SIM slot |
| Output to Ext. antenna : | yes |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Input voltage (V) : | 9 - 50 (DC) |
| Max. Voltage (jack) (V) : | 50 |
| Max. Voltage (PoE) (V) : | 50 |
| Min. Voltage (jack) (V) : | 9 |
| Min. Voltage (PoE) (V) : | 9 |
| PoE support : | yes |
| Power consumption - typical (W) : | 9 |
| Operating system | |
| Operating system : | RutOS |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Support | |
| Podpora eSIM : | yes |
| SIM slot : | yes |
| Security | |
| Default IP : | 192.168.1.1 |
| Physical properties | |
| Color : | black |
| Depth (mm) : | 93.7 |
| Weight (g) : | 319 |
| Weight (kg) : | 0.319 |
| Dimensions : | 100 × 93,7 × 30 mm |
| Width (mm) : | 100 |
| Height (mm) : | 30 |
| Additional equipment and features | |
| LED indication : | yes |
| Certification mark : | CE, UKCA, CB, EAC, UCRF, RCM, R-NZ, WEEE |
Code: NARTPL1217
