Unknown availability
High-performance 5G home router with eSIM support for instant internet connectivity.

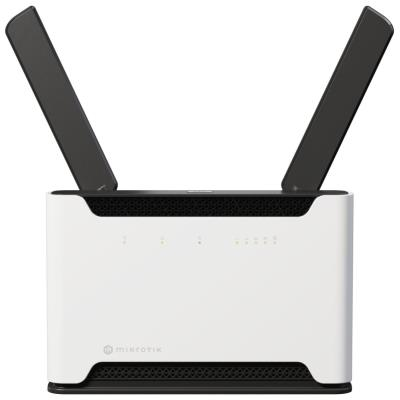

The MikroTik Chateau 5G R17 ax represents the latest generation of 5G routers with Release 17 support, delivering faster download speeds, improved signal stability, and quicker response times, even in areas with weak coverage. Thanks to integrated eSIM technology, you can connect to the internet instantly—even without a physical SIM card.
The router is equipped with a quad-core ARM processor clocked at 1.8 GHz, 1 GB of RAM, and runs on RouterOS v7, offering advanced network management capabilities. With support for 4×4 MIMO technology and dual Wi-Fi 6, it ensures reliable connectivity for all your devices.
Flexible connectivity options
The router supports both integrated eSIM and physical micro SIM cards. You can use the MikroTik Connectivity service for instant access or insert your own SIM card from any operator. Switching between different eSIM profiles is simple—ideal for travel or roaming.
Wireless connectivity that truly works
With four powerful built-in LTE/5G antennas and two external dual-chain Wi-Fi 6 antennas, the Chateau delivers outstanding performance for both downloads and uploads, even in crowded environments. Smart aggregation with broad regional FDD + TDD band support and strong reception thanks to 4×4 MIMO ensure stable connections.
Industrial-grade OS in a user-friendly package
Chateau runs RouterOS v7, an industrial-grade operating system trusted by ISPs and system administrators worldwide—but with a simple, user-friendly interface that anyone can learn. For even easier setup, an iOS/Android app is available.
BASIC SPECIFICATIONS
Processor: quad-core IPQ-6010, frequency 864–1800 MHz (auto)
CPU Architecture: ARM 64-bit
RAM: 1 GB
Storage: 128 MB NAND

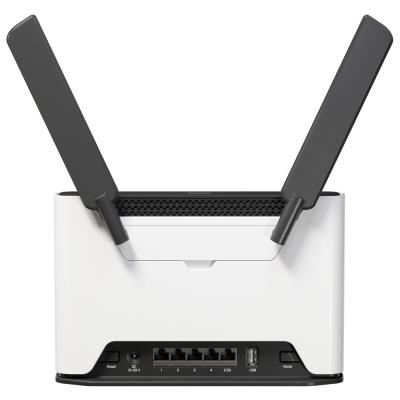

Ethernet Ports: 4× Gigabit RJ-45, 1× 2.5 Gigabit RJ-45
USB: 1× USB 2.0
SIM Slots: micro SIM, eSIM
Wireless Interface: 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain
Antenna Gain: 3 dBi (2.4 GHz), 6 dBi (5 GHz)
5G SA Category: 7.01 Gbps downlink, 1.25 Gbps uplink
5G NSA Category: 5.47 Gbps downlink, 730 Mbps uplink
LTE Category: 20 (2.0 Gbps downlink, 211 Mbps uplink)
Operating System: RouterOS v7, license level 4
Operating Temperature: -40 °C to +70 °C

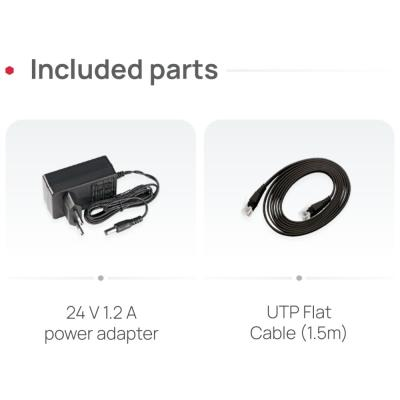

Power Supply: DC 12–28 V, 24 V / 1.2 A power adapter included
Maximum Power Consumption: 26 W
| Brand | |
| Type specification : | Routerboard |
| Manufacturer : | MIKROTIK |
| Technical specification | |
| Sensitivity (dBm) : | -100 (2,4 GHz, 1 Mb/s, Rx), -96 (5 GHz, 6 Mb/s, Rx) |
| Wi-Fi 2,4 GHz (Mbps) : | 574 |
| Wi-Fi 5 GHz (Mbps) : | 1200 |
| LTE/4G/5G (Mbps) : | 7010 |
| Ethernet (Mbps) : | 2500 |
| Outdoor use : | no |
| Indoor use : | yes |
| Max. operating temperature (°C) : | 70 |
| Data Rate (Mbps) : | 574 (2,4GHz), 1200 (5GHz), 2000 (LTE), 7010 (5G) |
| Min. operating temperature (°C) : | -40 |
| Placement : | desktop |
| NAND (MB) : | 128 |
| Gain (dBi) : | 3 (2,4GHz), 6 (5GHz) |
| Processor | |
| Number of Cores : | 4 |
| Processor : | Qualcomm IPQ-6010, 1,8 GHz |
| Memory | |
| Memory size (MB) : | 1000 |
| Display | |
| Display : | no |
| Communication | |
| 3G support : | yes |
| 4G/LTE support : | yes |
| 5G support : | yes |
| Wi-Fi : | yes |
| Network interfaces | |
| Wi-Fi frequency : | 2400 MHz/5000 MHz |
| Gigabit LAN : | yes |
| LAN : | yes |
| Max. output power (dBm) : | 24 |
| Standards : | 802.11a/b/g/n/ac/ax |
| Port Speed : | 1 Gb/s + 2,5 Gb/s |
| Standard Wi-Fi : | 802.11a/b/g/n/ac/ax |
| Wi-Fi : | yes |
| Antenna | |
| Antenna type : | external |
| Antenna type : | internal |
| Inputs and outputs | |
| RJ-45 : | 5 |
| Interface : | LAN, Wi-Fi, 3G, 4G/LTE, 5G |
| RS-232 port : | no |
| USB 2.0 : | 1 |
| Output to Ext. antenna : | no |
| Card reader | |
| MicroSD card support : | no |
| Power supply | |
| Input voltage (V) : | 12 - 28 (DC) |
| Max. Voltage (jack) (V) : | 28 |
| Min. Voltage (jack) (V) : | 12 |
| PoE support : | no |
| Power consumption - typical (W) : | 16 |
| Operating system | |
| License : | L4 |
| Operating system : | RouterOS v7 |
| Warranty | |
| Warranty period EU (months) : | 26 |
| Warranty period CRN (months) : | 26 |
| Support | |
| Podpora eSIM : | yes |
| SIM slot : | yes |
| Physical properties | |
| Color : | white - black |
| Additional equipment and features | |
| LED indication : | yes |
| Certification mark : | CE, EAC, ROHS |
Code: NABMKR1116
